Seat Adjuster Switch - Passenger

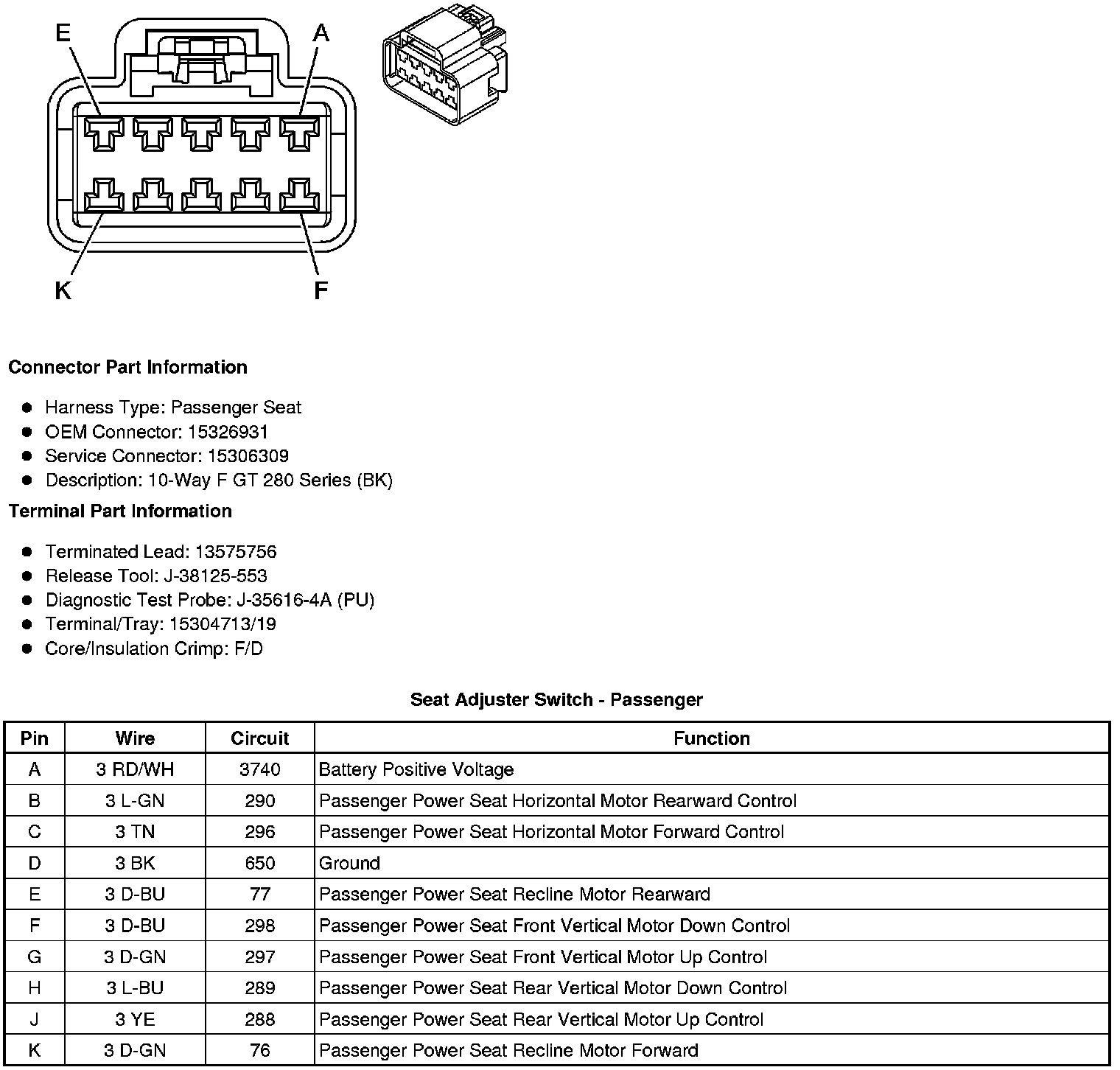

Seat Adjuster Switch - Passenger
Component Connector End Views
Seat Adjuster Switch - Passenger
