Seat Adjuster Motor Assembly - Driver

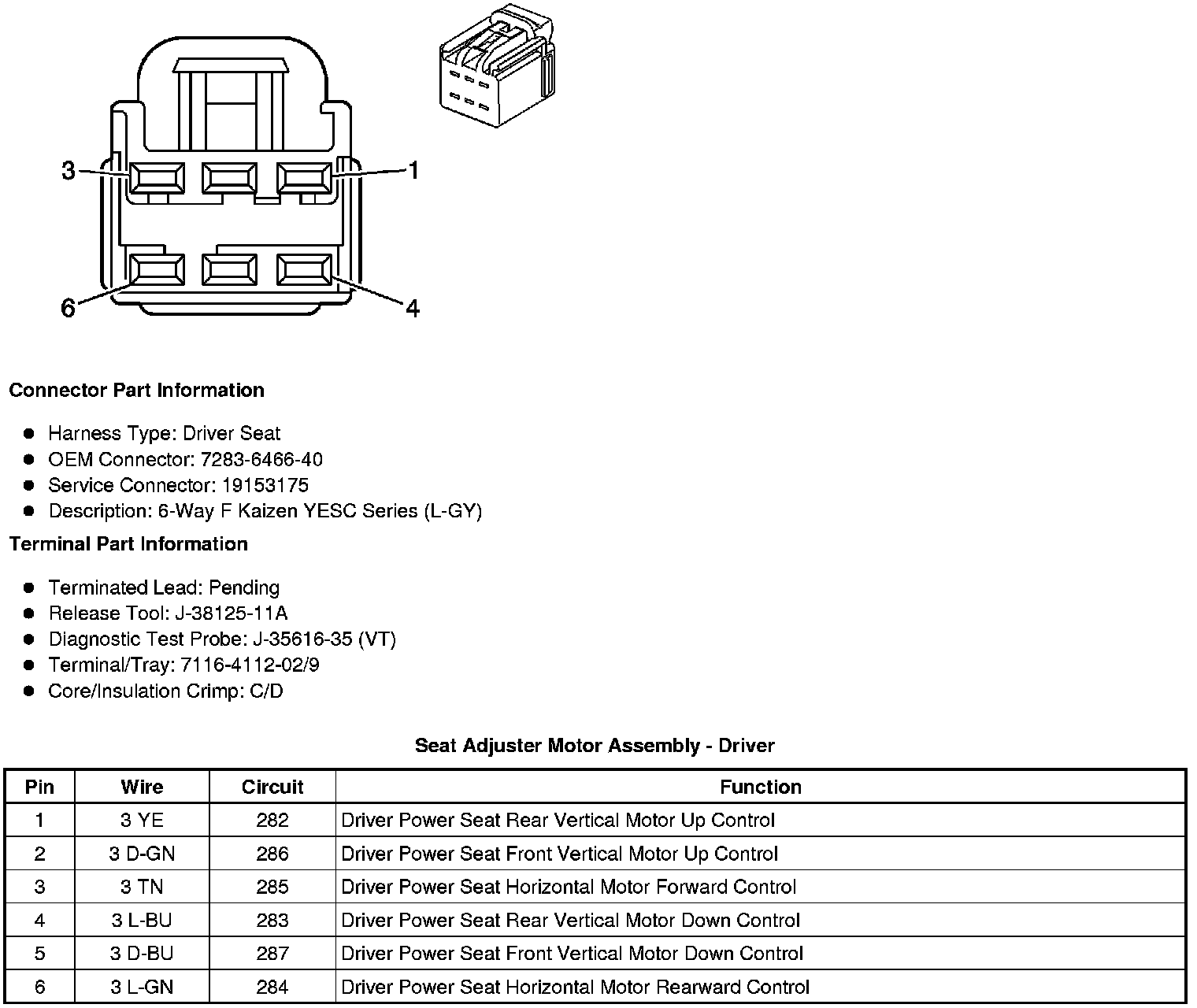

Seat Adjuster Motor Assembly - Driver
Component Connector End Views
Seat Adjuster Motor Assembly - Driver
