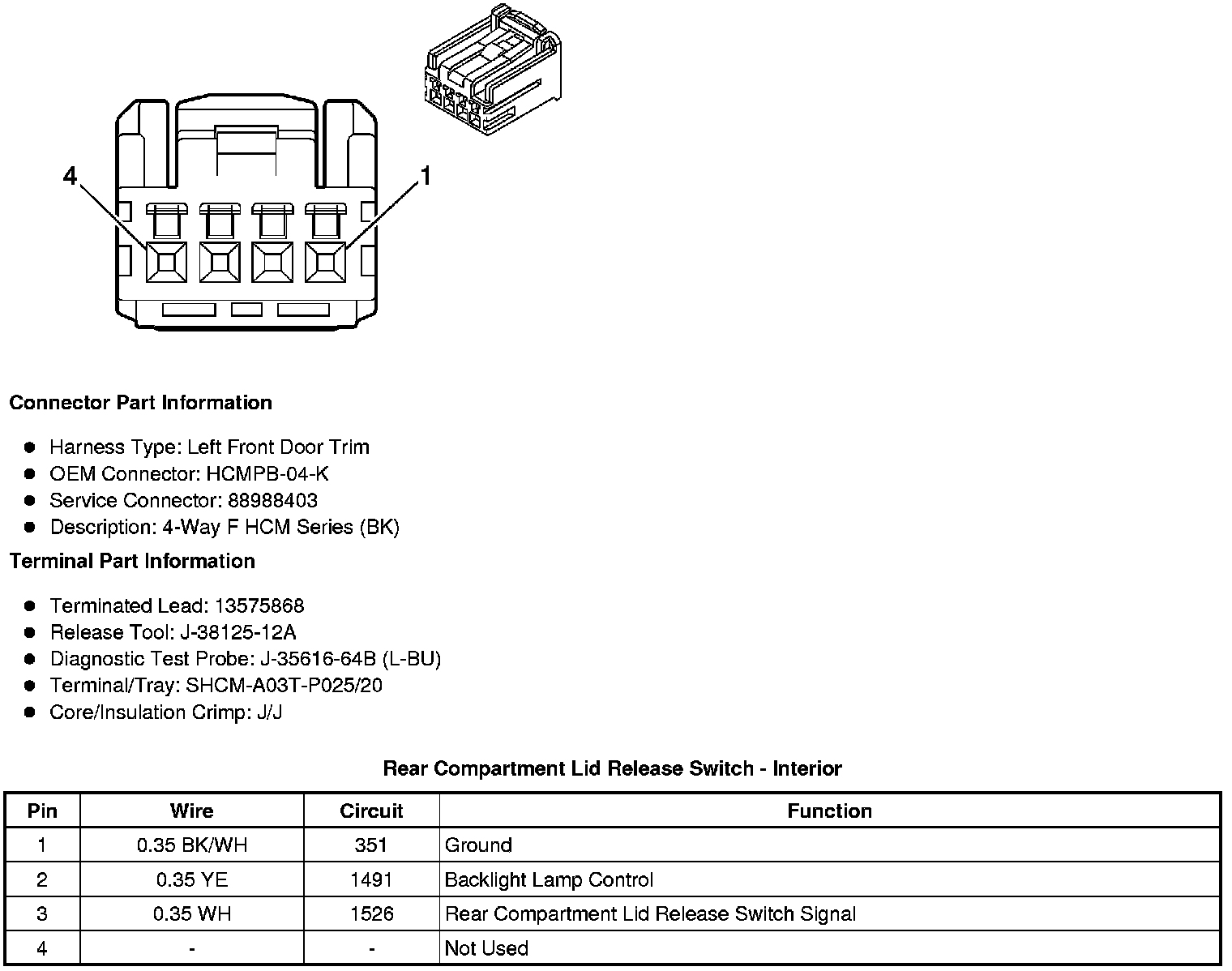

Rear Compartment Lid Release Switch - Interior
Rear Compartment Lid Release Switch - Interior
Component Connector End Views
Rear Compartment Lid Release Switch - Interior
