I/P Courtesy Lamp - Left

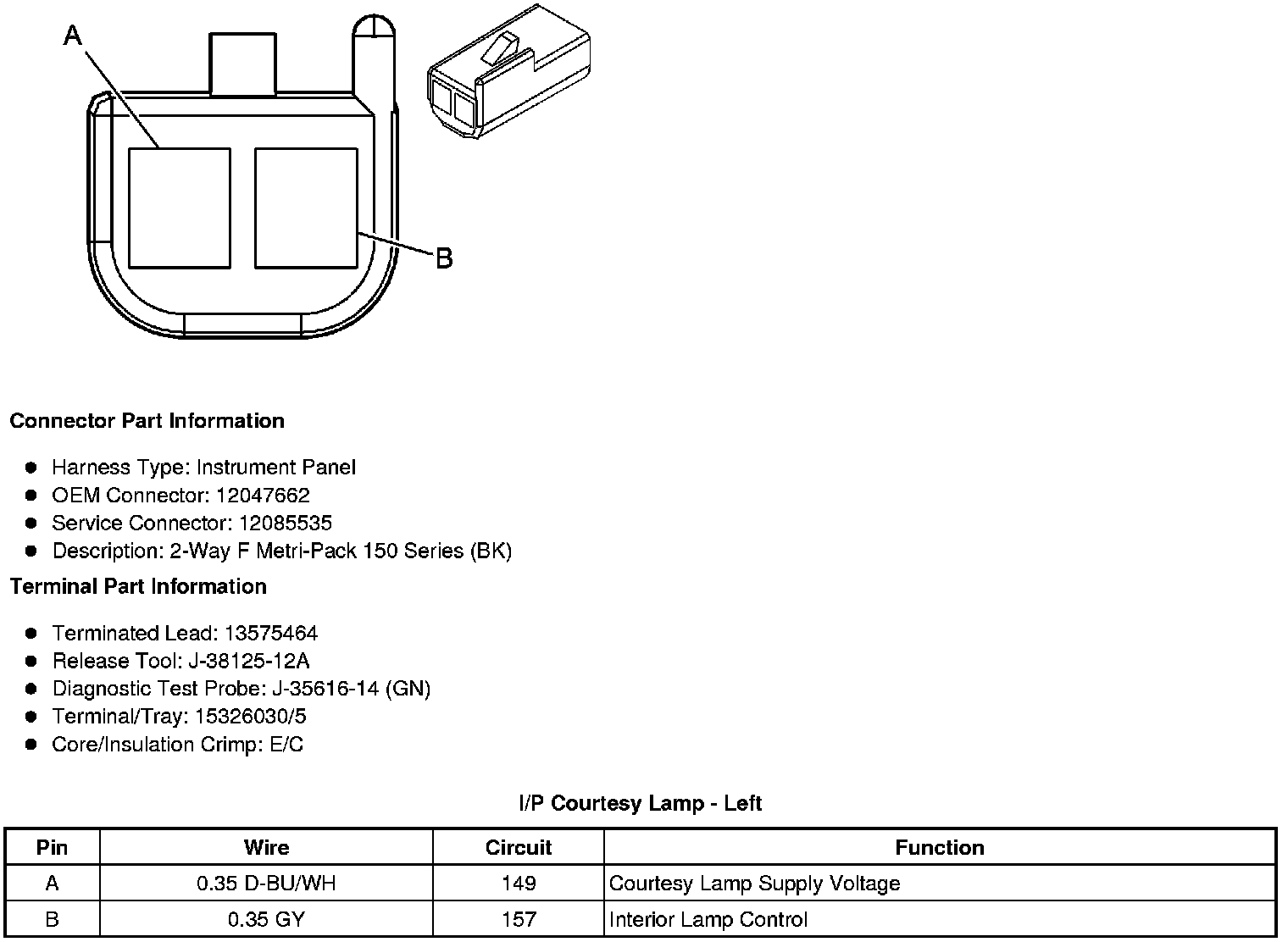

I/P Courtesy Lamp - Left
Component Connector End Views
I/P Courtesy Lamp - Left
