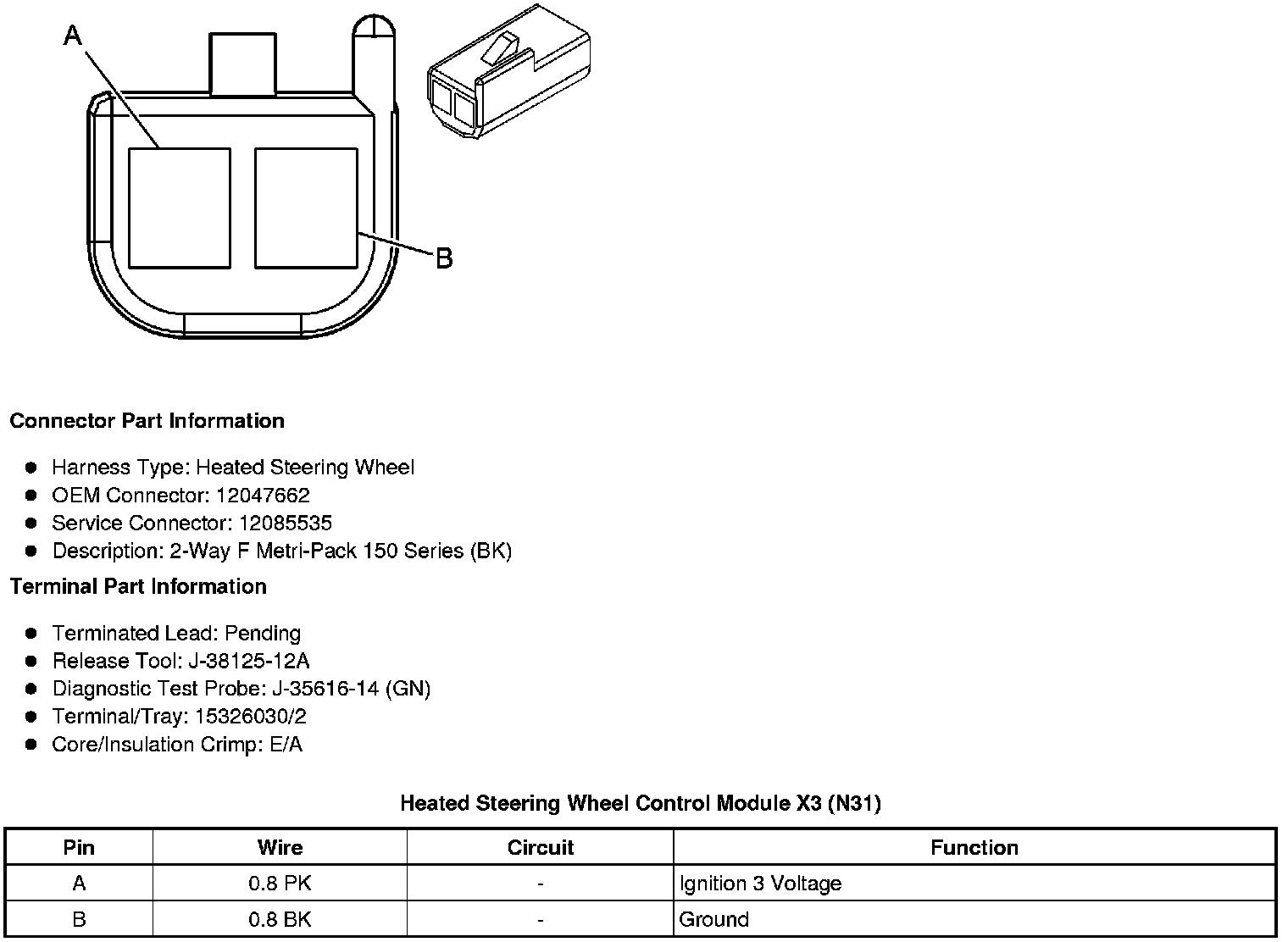

Heated Steering Wheel Control Module X3 (N31)
Heated Steering Wheel Control Module X3 (N31)
Component Connector End Views
Heated Steering Wheel Control Module X3 (N31)
