Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1
Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1
Component Connector End Views

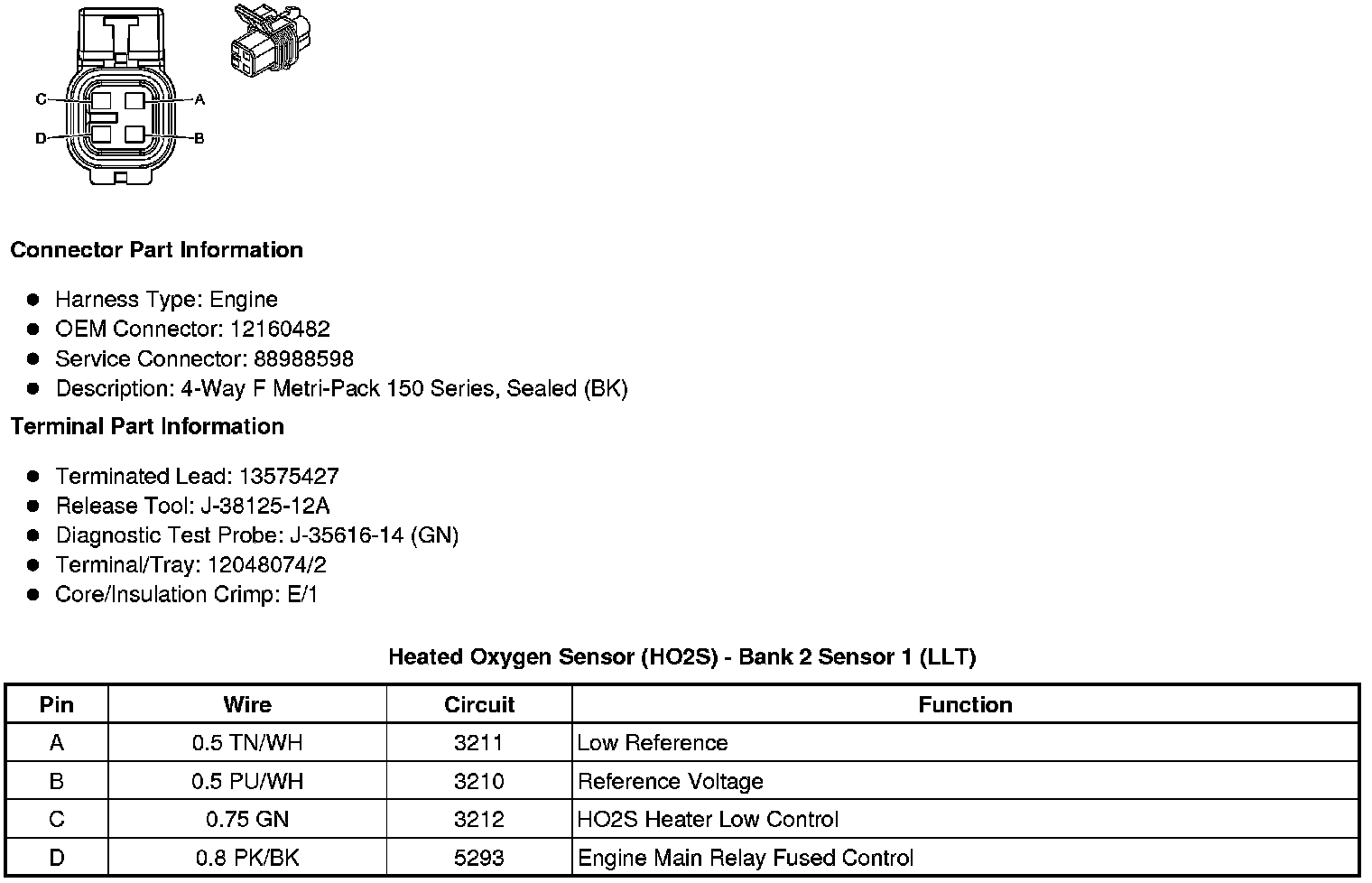

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LLT)
