Headlamp Ballast - Left (T4F)
Headlamp Ballast - Left (T4F)

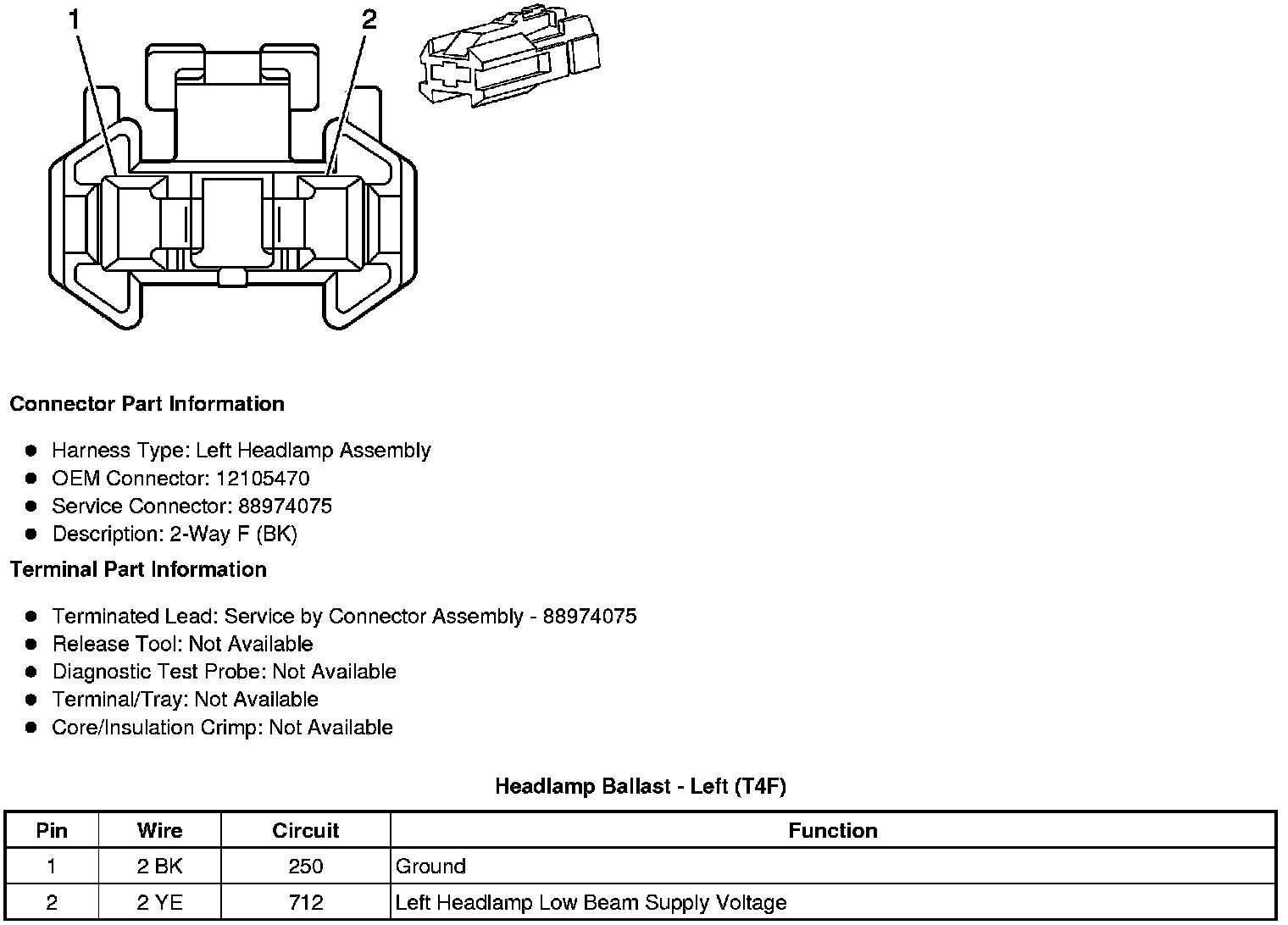

Component Connector End Views
Headlamp Ballast - Left (T4F)
