Door Lock Indicator - Passenger
Door Lock Indicator - Passenger

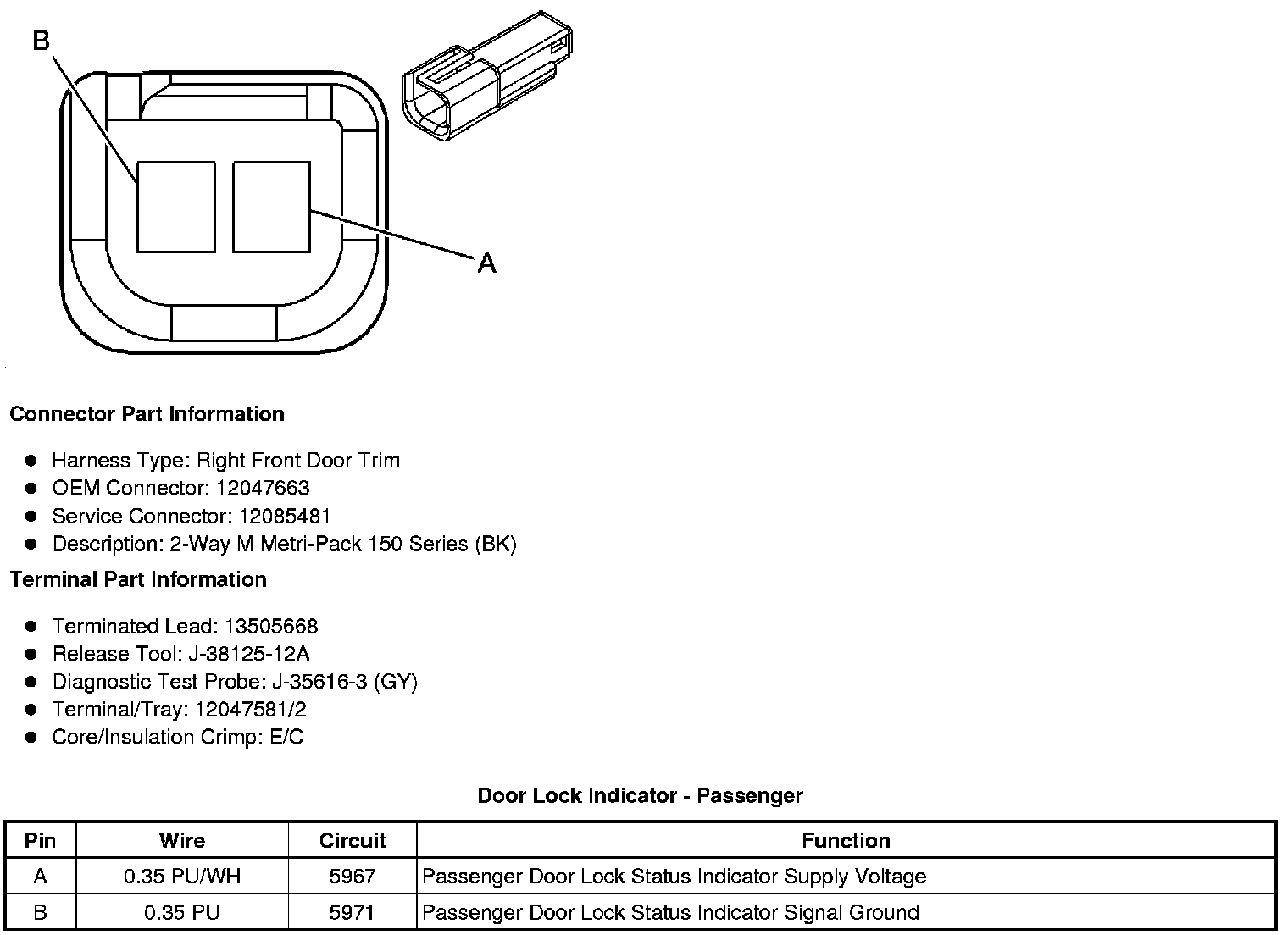

Component Connector End Views
Door Lock Indicator - Passenger
