Home >> Cadillac >> 2011 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector End Views By Name >> Digital Video Disc (DVD) Display - Driver Seat Headrest X2 (SPO Accessory)

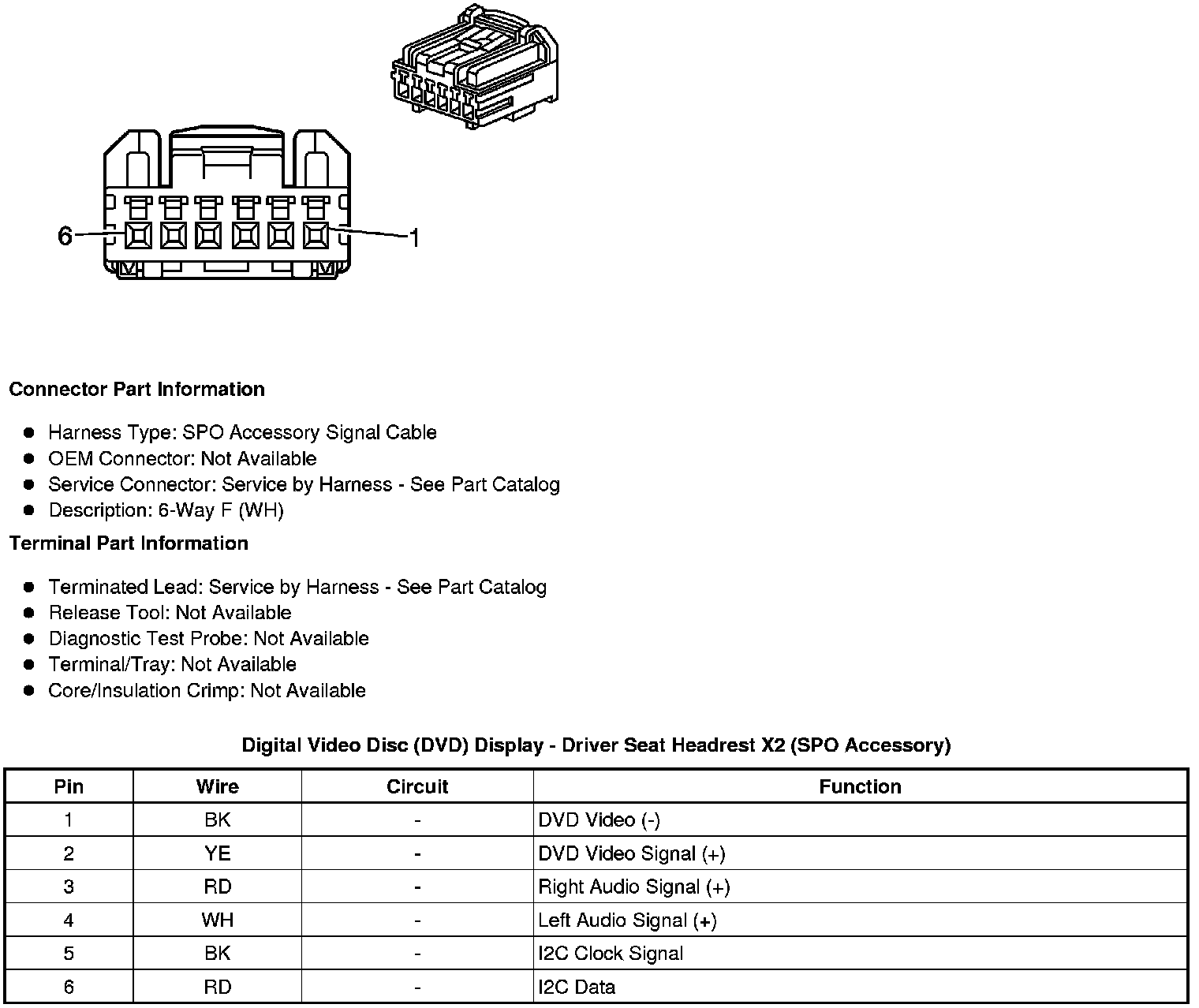

Digital Video Disc (DVD) Display - Driver Seat Headrest X2 (SPO Accessory)

Component Connector End Views

Digital Video Disc (DVD) Display - Driver Seat Headrest X2 (SPO Accessory)
