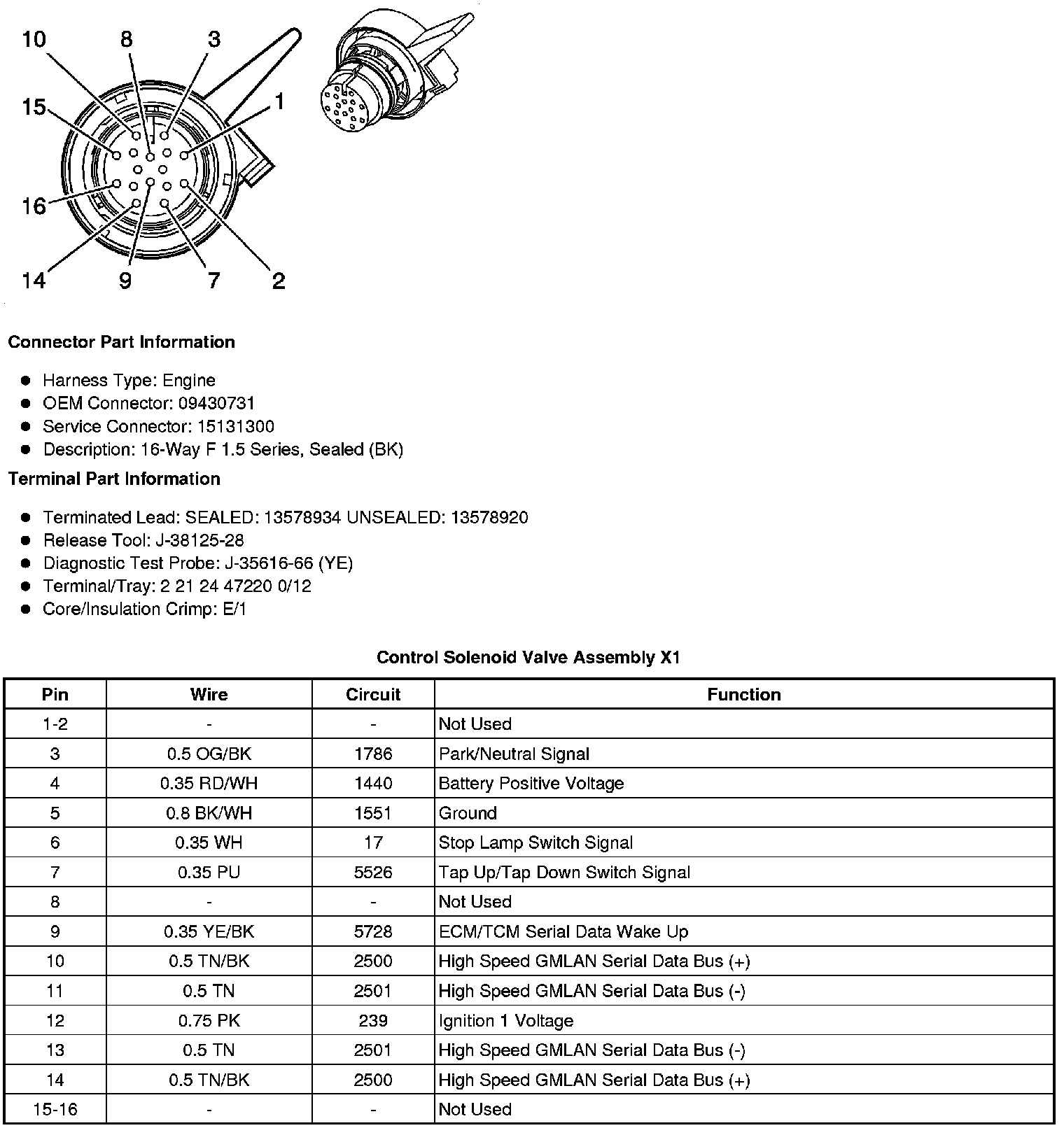

Control Solenoid Valve Assembly X1
Control Solenoid Valve Assembly X1
Component Connector End Views
Control Solenoid Valve Assembly X1
