Cadillac
>>
2011
>>
STS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>

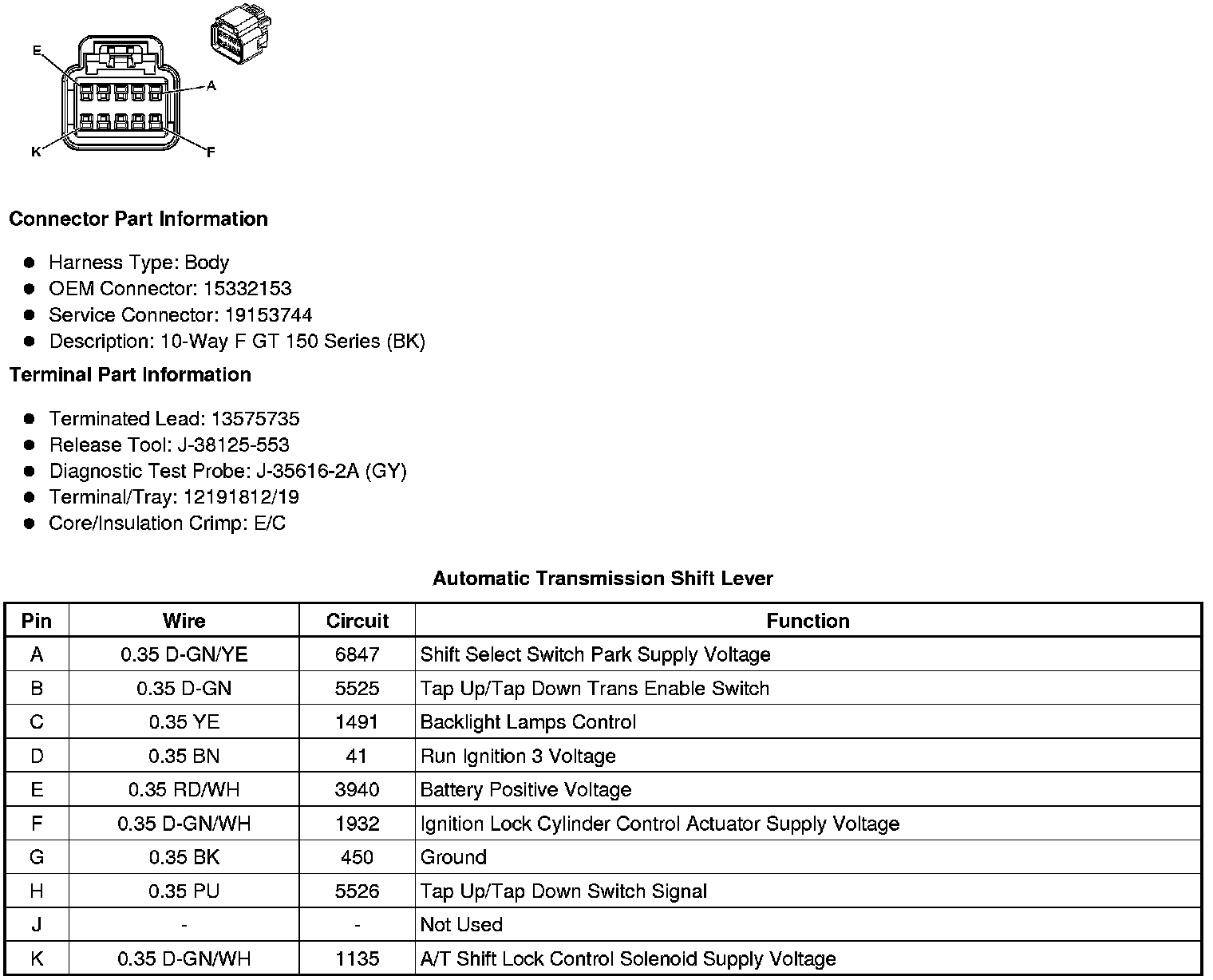

Automatic Transmission Shift Lever
Automatic Transmission Shift Lever
Component Connector End Views
Automatic Transmission Shift Lever
