Automatic Level Control (ALC) Compressor (F55)
Automatic Level Control (ALC) Compressor (F55)
Component Connector End Views

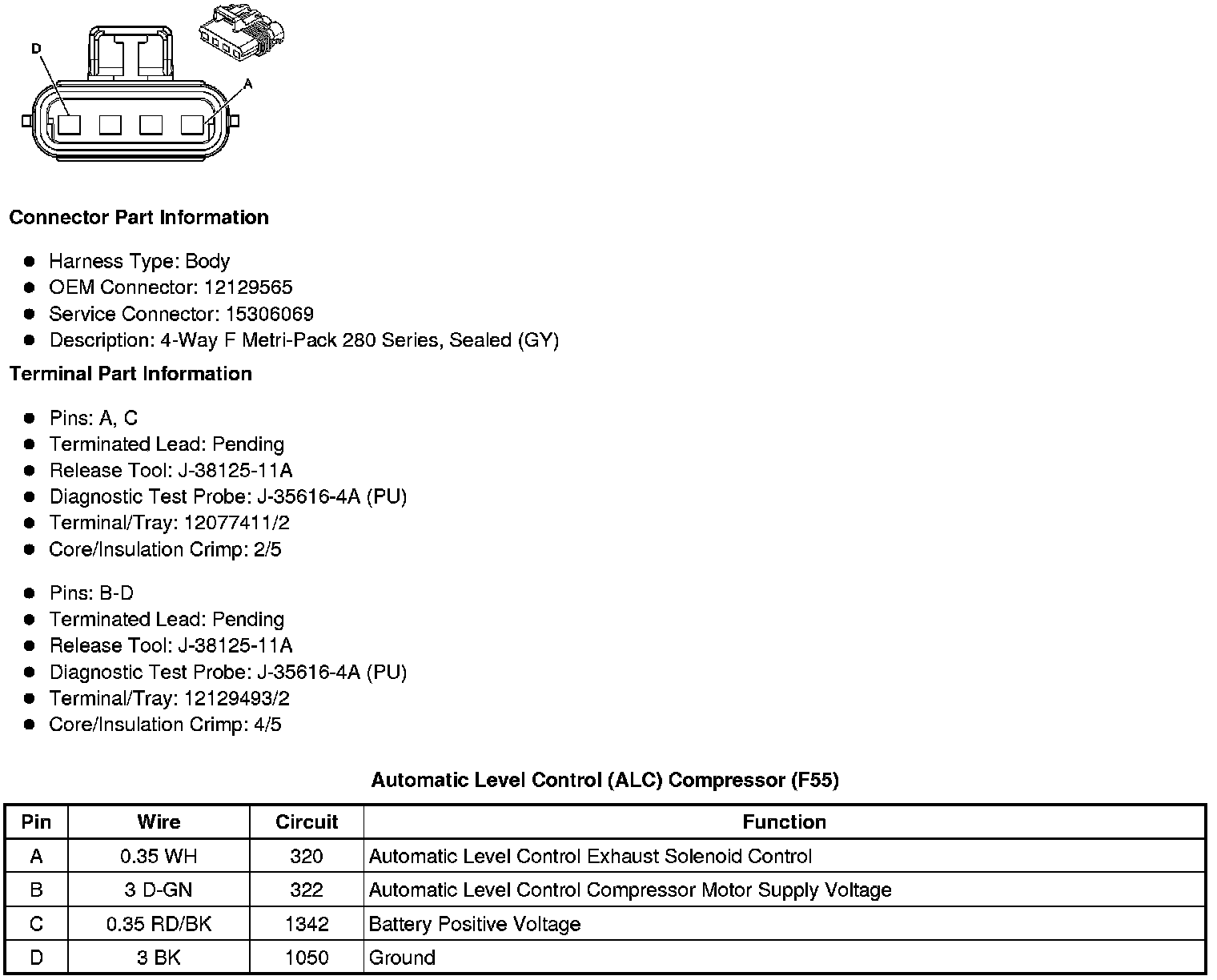

Automatic Level Control (ALC) Compressor (F55)
