Antenna - Keyless Entry




Component Connector End Views

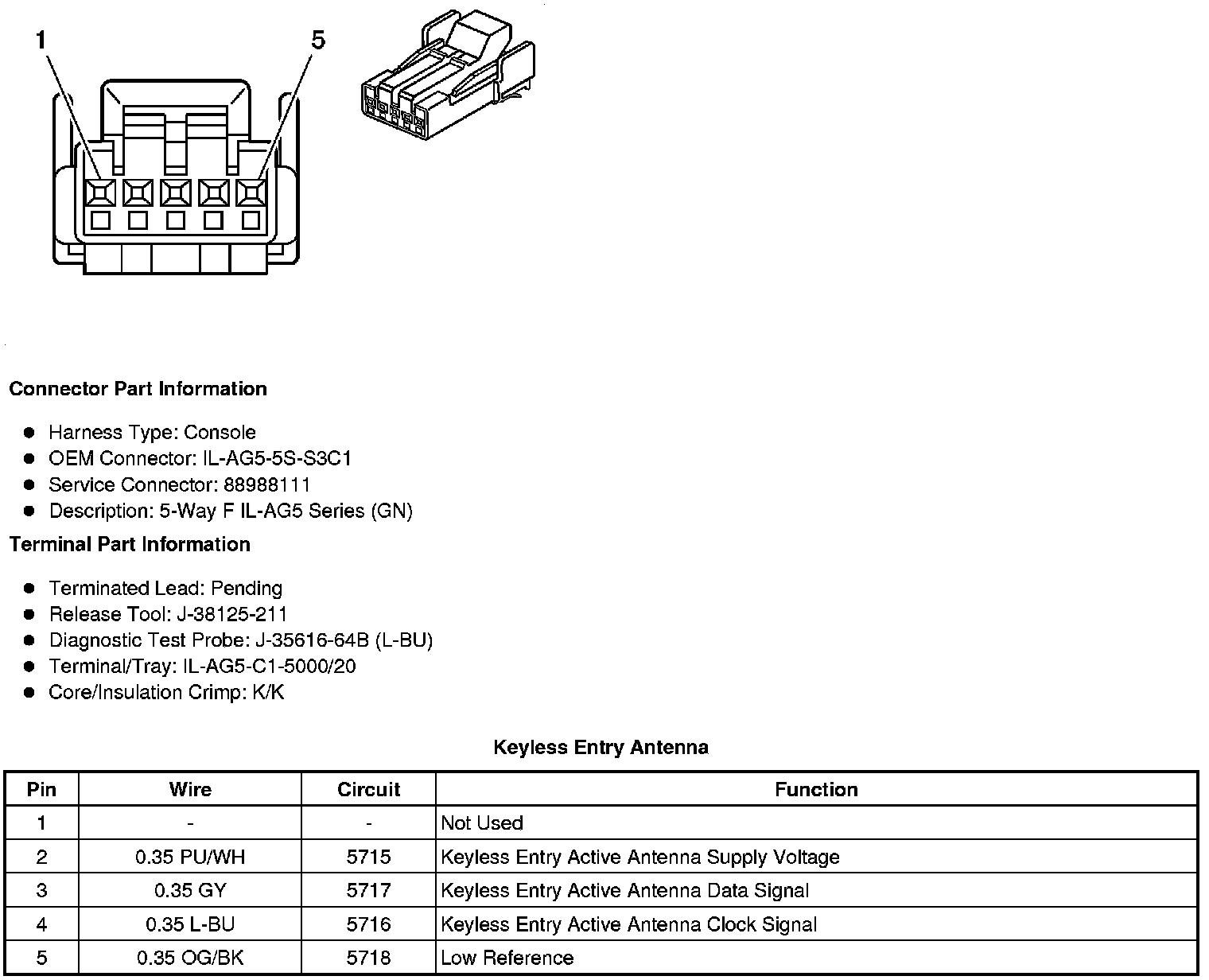

Keyless Entry Antenna





Keyless Entry Antenna - Backup





Keyless Entry Antenna - Left Front Door Handle





Keyless Entry Antenna - Rear Compartment

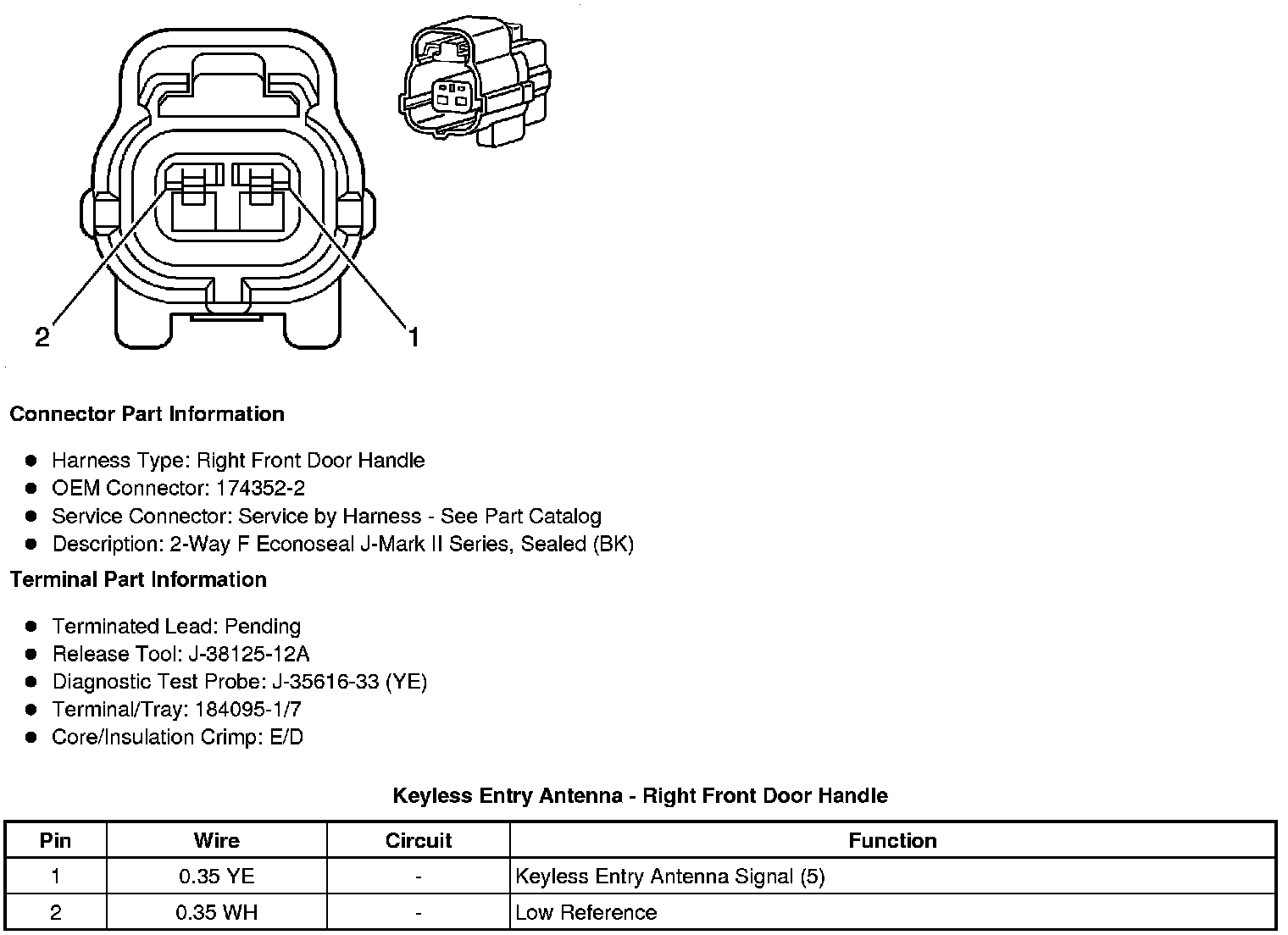

Keyless Entry Antenna - Right Front Door Handle
