Side Air Bag




Component Connector End Views

Inflatable Restraint Side Impact Module - Left

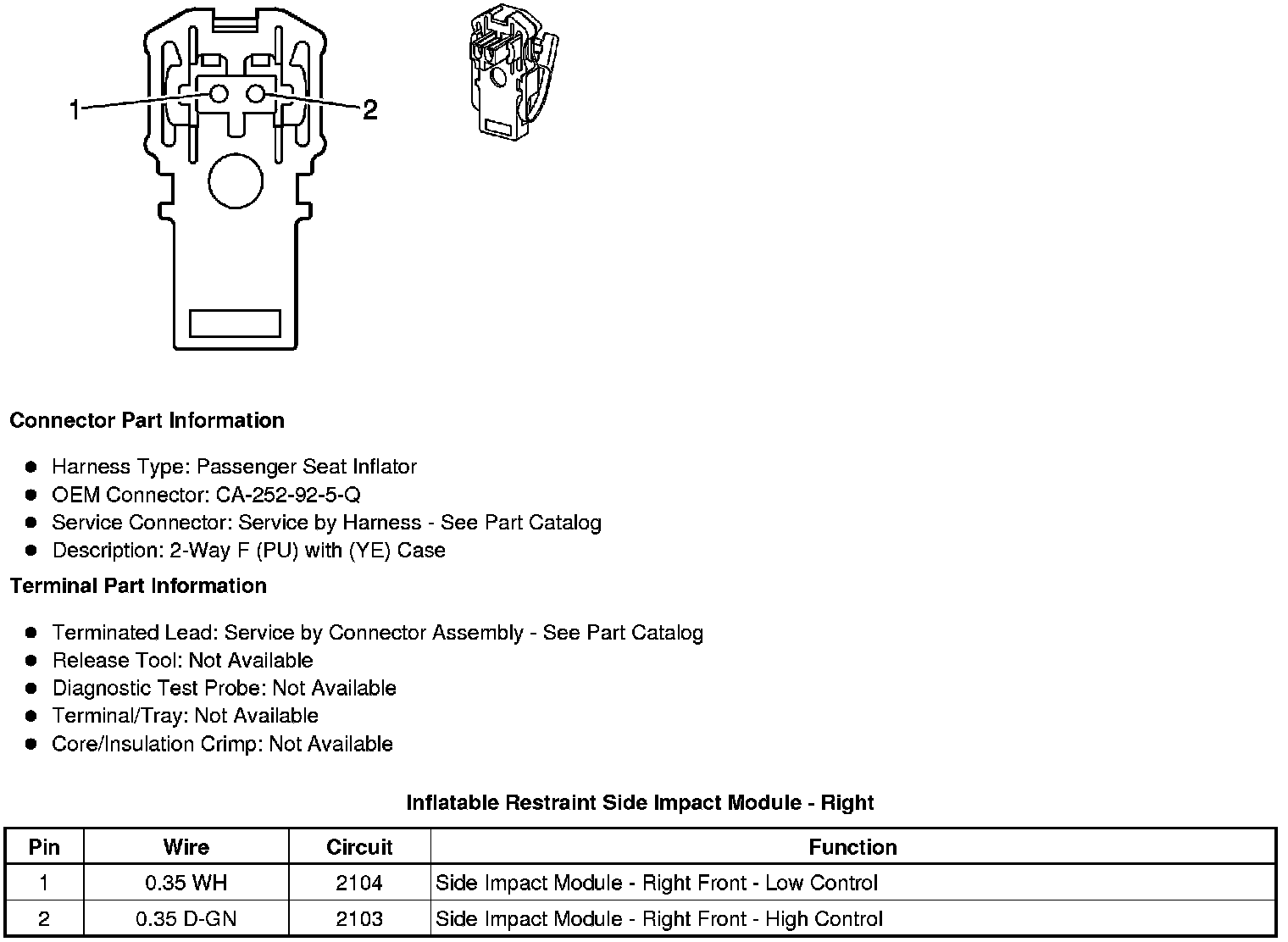

Inflatable Restraint Side Impact Module - Right
