Front Air Bags




Component Connector End Views

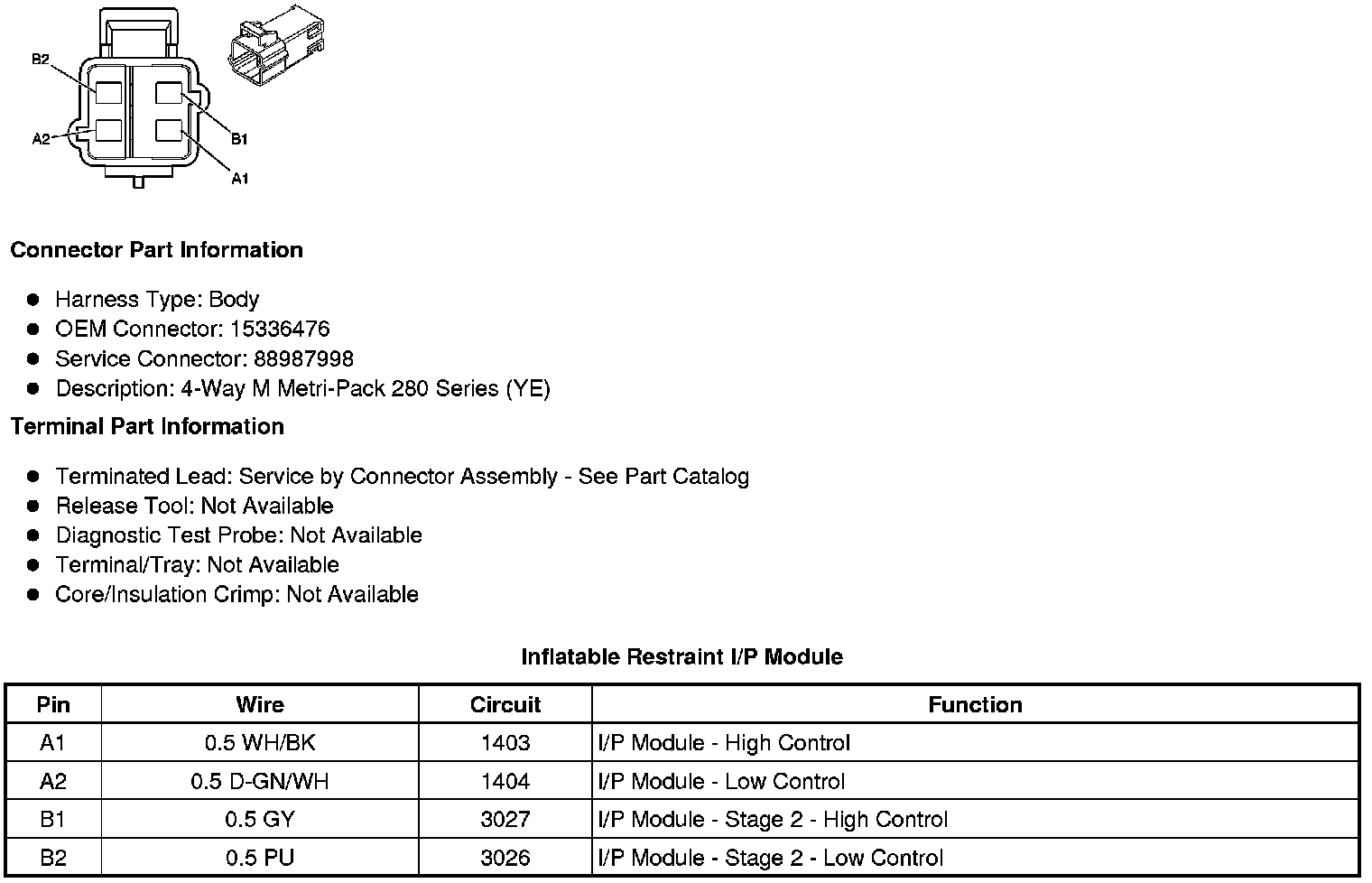

Inflatable Restraint I/P Module

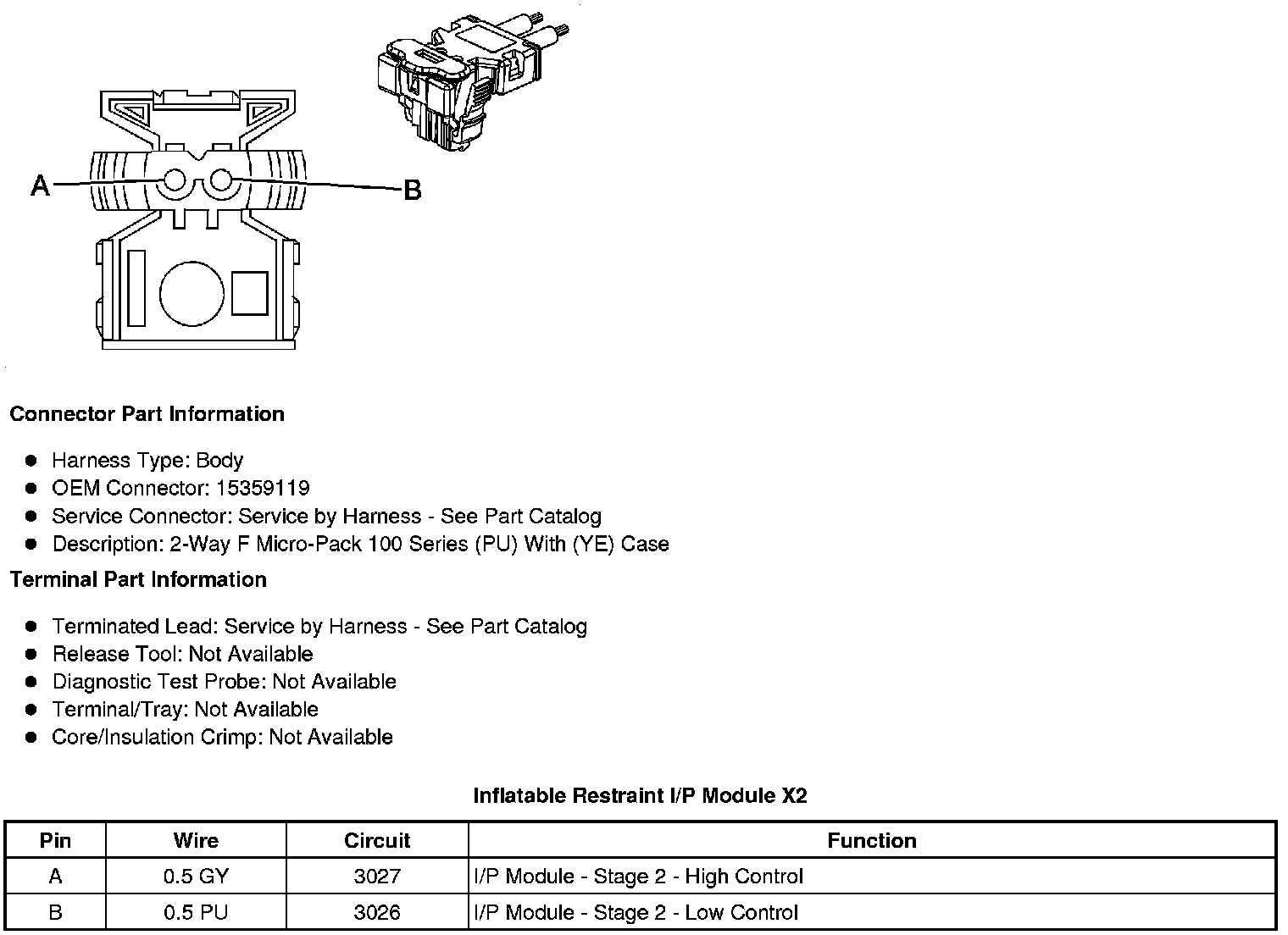

Inflatable Restraint I/P Module X2

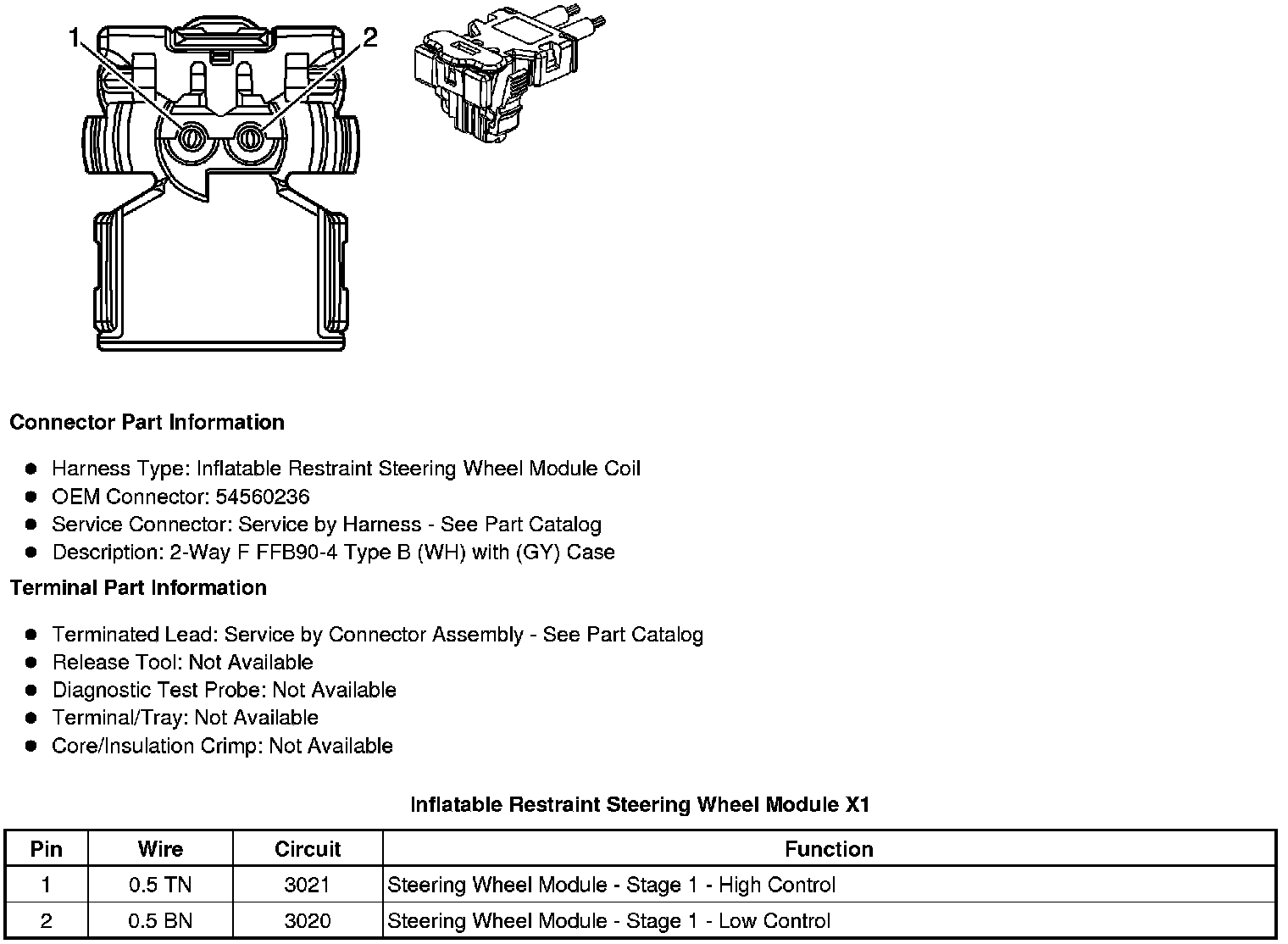

Inflatable Restraint Steering Wheel Module X1

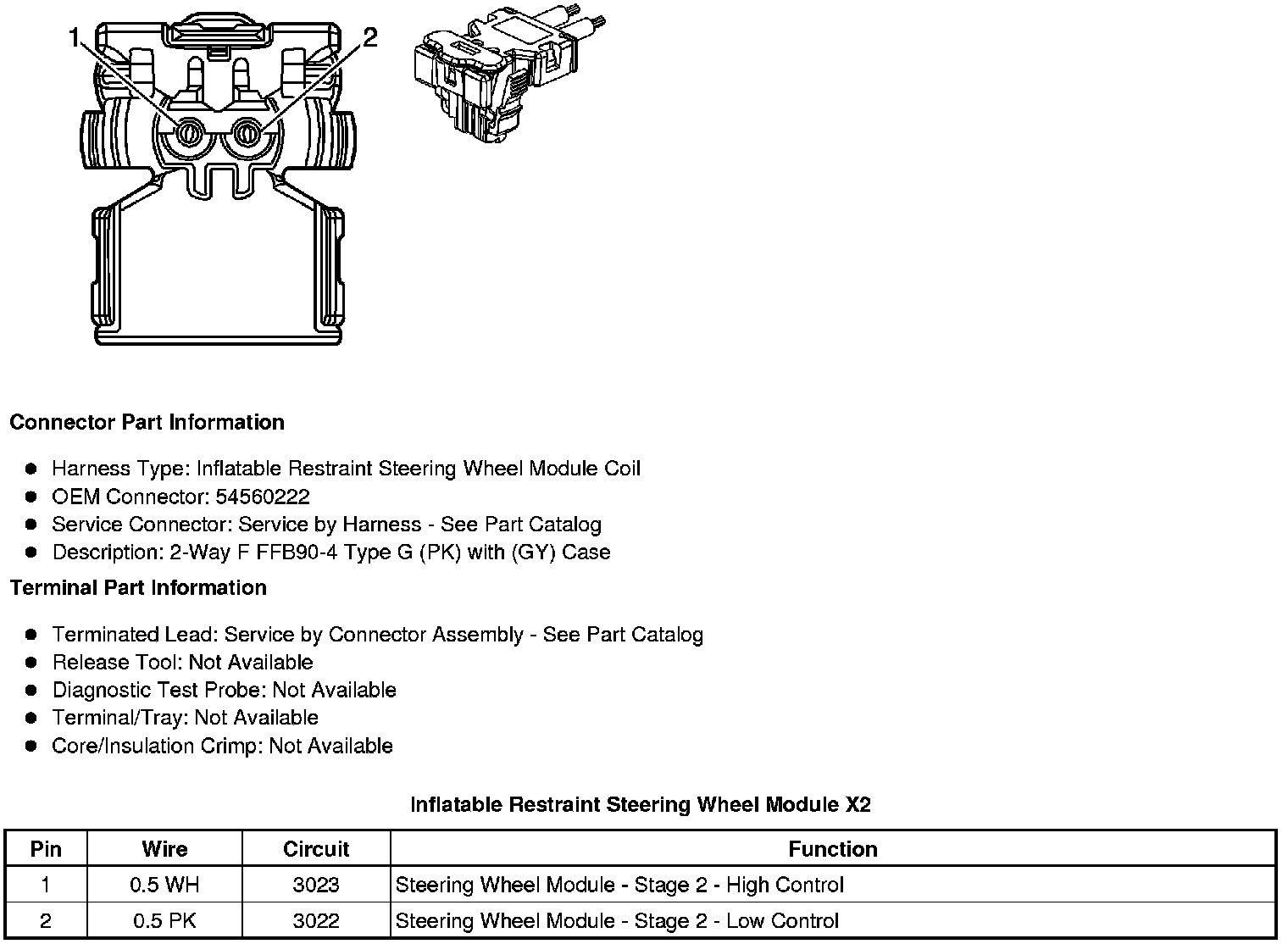

Inflatable Restraint Steering Wheel Module X2





Inflatable Restraint Roof Rail Module - Left





Inflatable Restraint Roof Rail Module - Right
