Air Bag Deactivation Indicator
Air Bag Deactivation Indicator

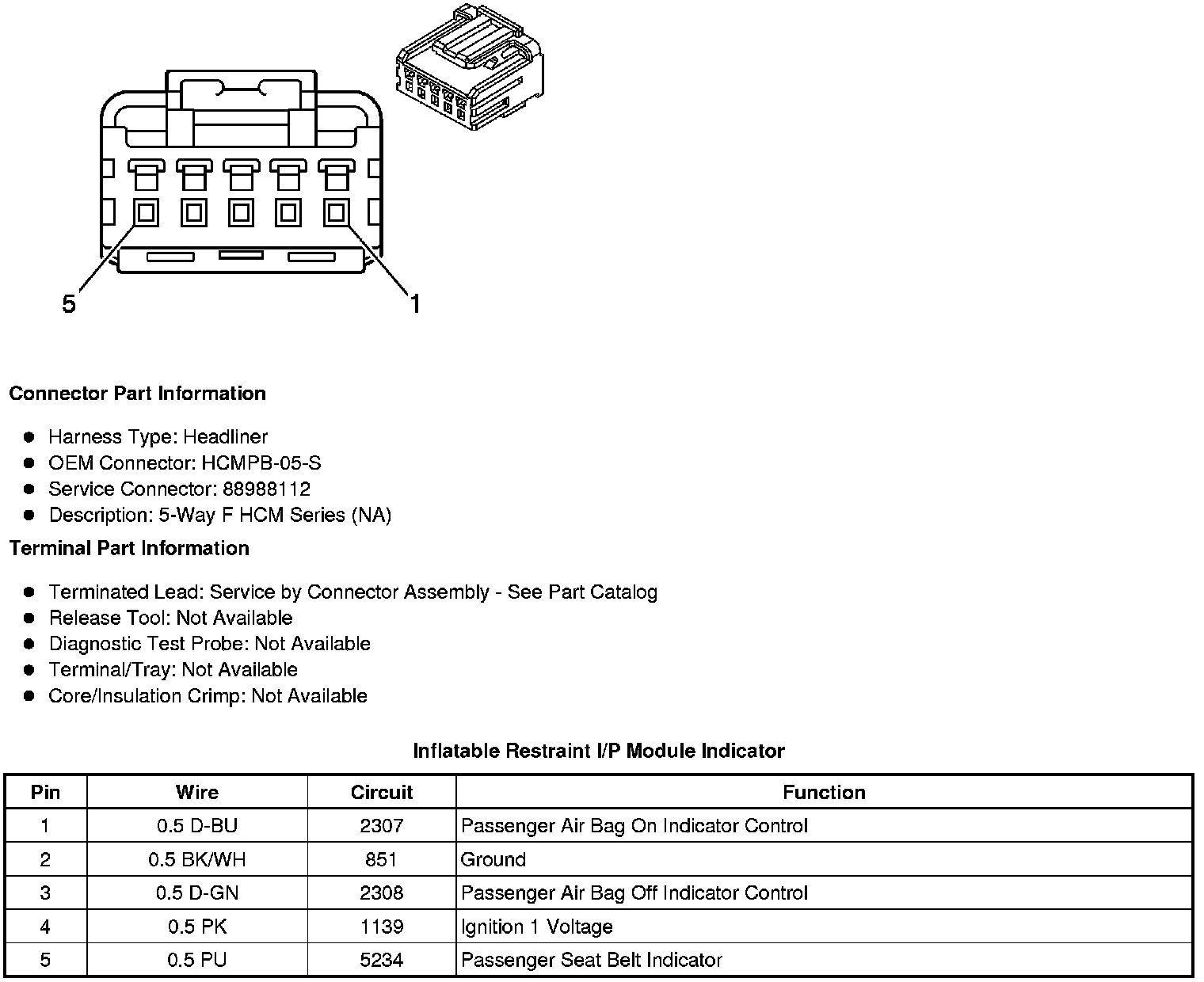

Component Connector End Views
Inflatable Restraint I/P Module Indicator
