Front Floor Upper Console Trim Plate Replacement

Front Floor Upper Console Trim Plate Replacement

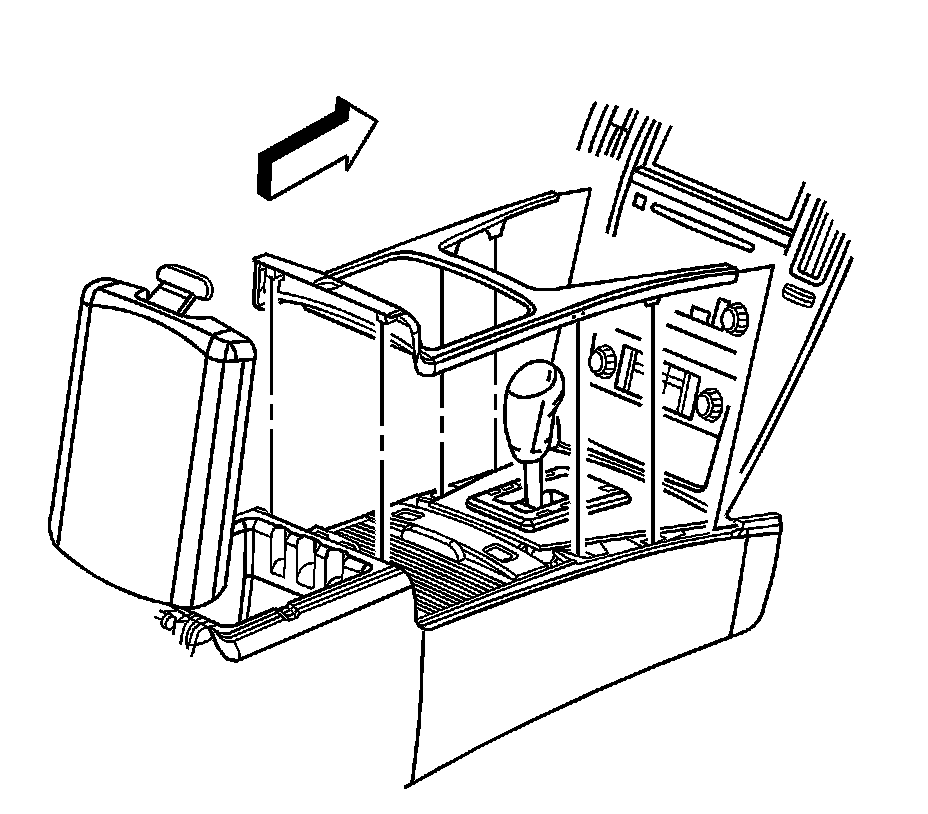

Removal Procedure




1. Using a blunt trim tool release the clip retainers under the arm rest.
2. Release the clip retainers on the front of the trim panel.
3. Remove the trim panel.

Installation Procedure




1. Locate the front of the trim to the front of the console.
2. Push the retaining clips in order to secure the trim to the console.
