Front Floor Console Armrest Replacement

Front Floor Console Armrest Replacement

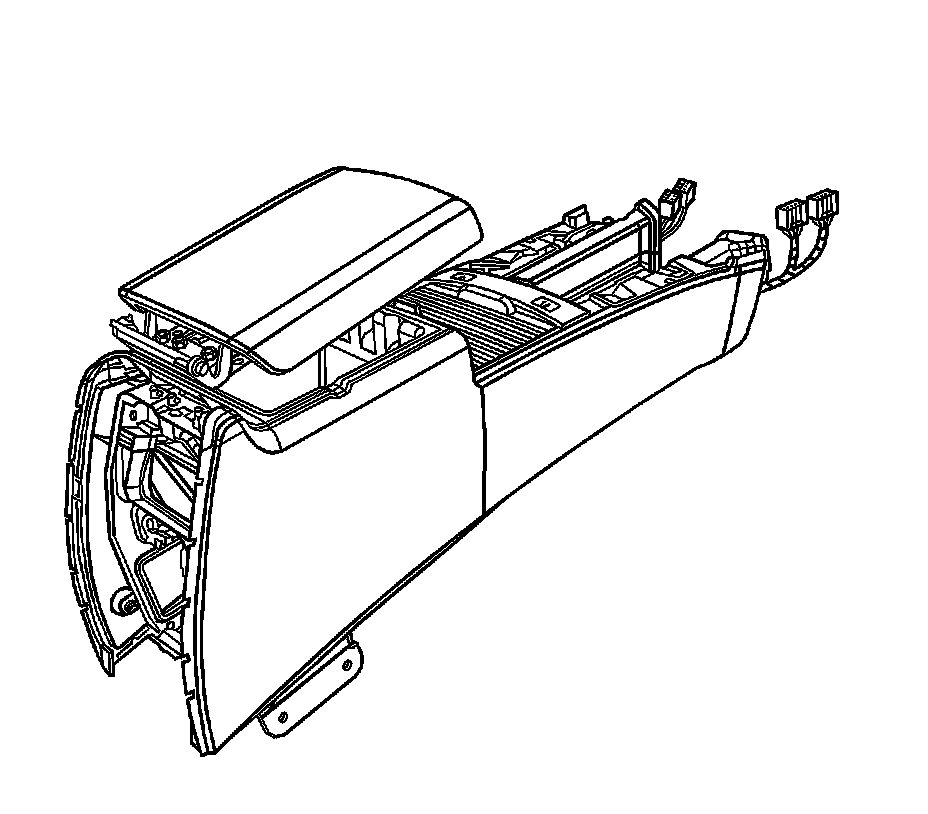

Removal Procedure

1. Remove the console end panel. Refer to Center Console End Panel Replacement (Center Console End Panel Replacement).




2. Remove the 2 outer bolts and loosen the 2 inner bolts securing the armrest assembly to the console.
3. Slide the armrest out in order to remove it.

Installation Procedure

1. Locate the armrest to the center console.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the 4 bolts securing the armrest to the console and tighten to 2 Nm (18 lb in).
3. Install the console end panel. Refer to Center Console End Panel Replacement (Center Console End Panel Replacement).
