Center Console End Panel Replacement

Center Console End Panel Replacement

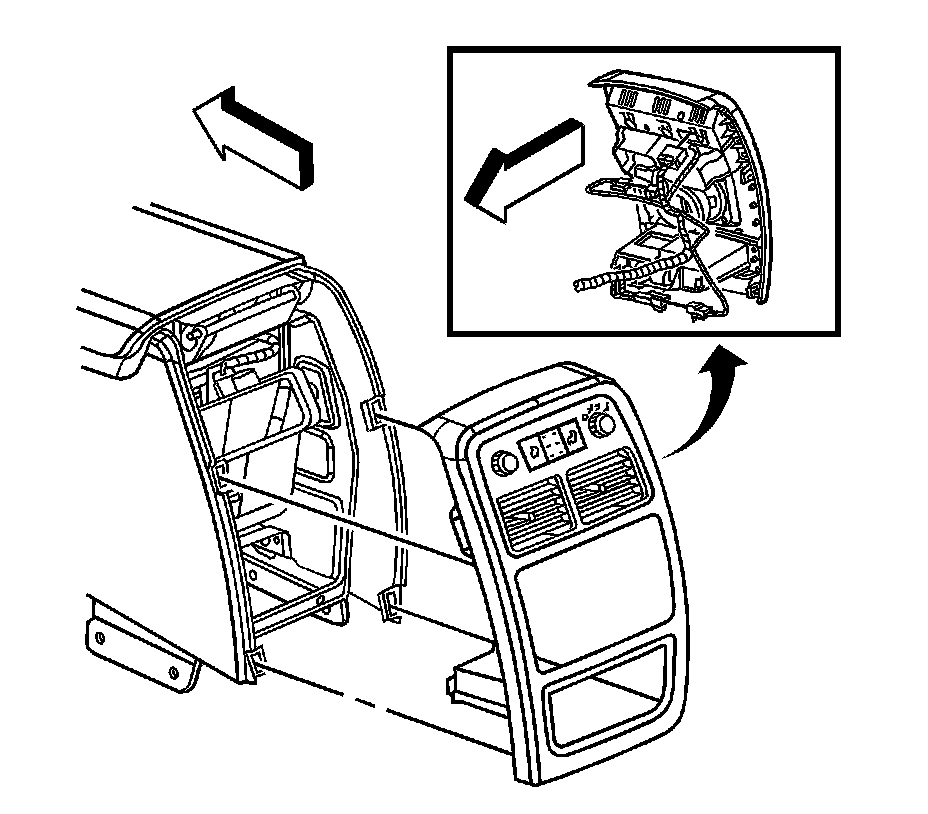

Removal Procedure




1. Release the retaining clips using a blunt trim tool.
2. Disconnect the wire harness connectors.
3. Remove the end panel trim panel.
4. If replacing the trim panel, transfer all necessary components.

Installation Procedure




1. Connect the wire harness connectors.
2. Locate the end panel to the console.
3. Push on the end panel in order to secure the retaining clips.
