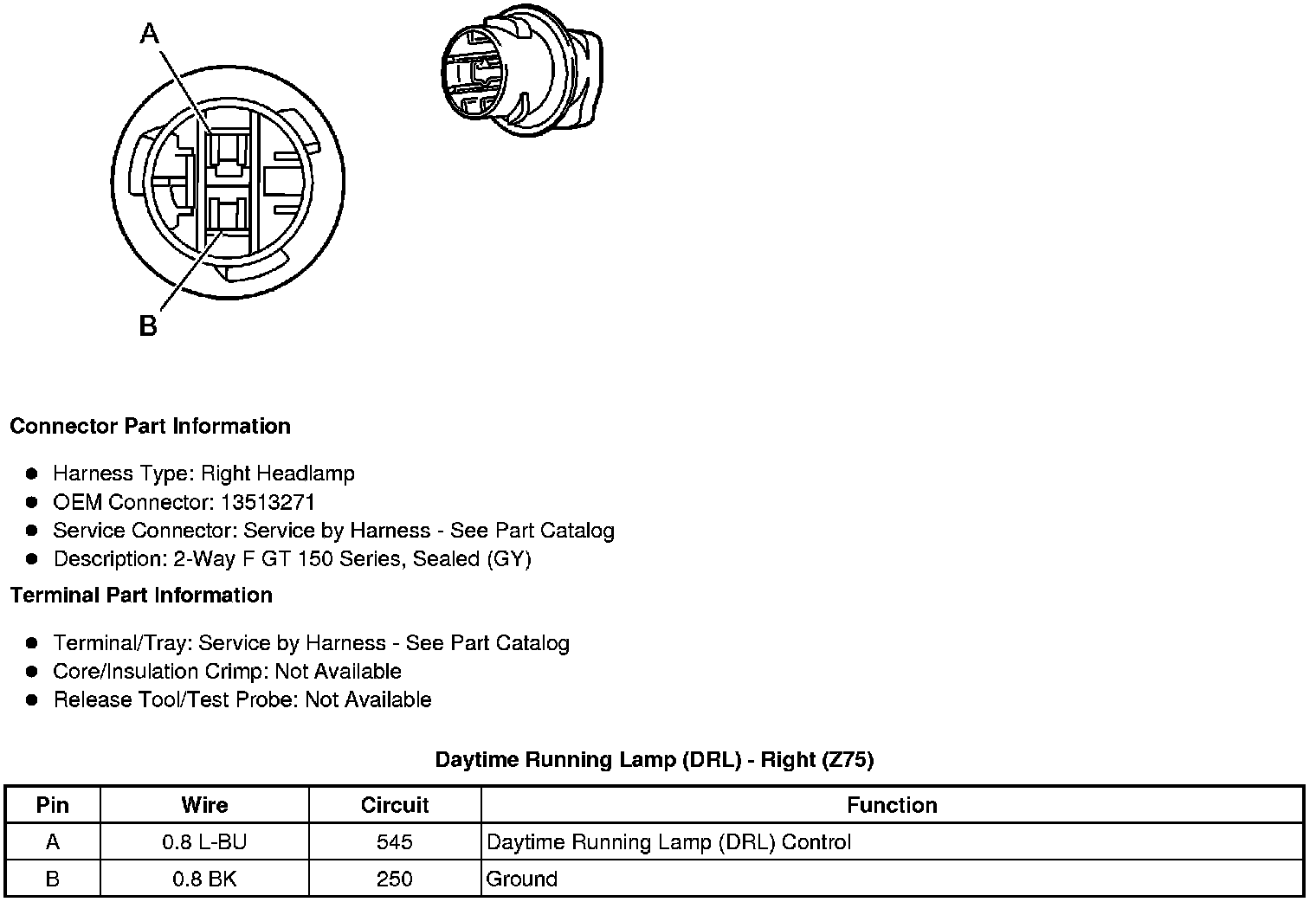

Home >> Cadillac >> 2011 >> Escalade RWD V8-6.2L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Name >> Daytime Running Lamp (DRL) - Right
