LEMON Manuals: Even more car manuals for everyone
Home >> Cadillac >> 2011 >> Escalade RWD V8-6.2L >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Diagrams >> Backup Lamp - Right

Backup Lamp - Right

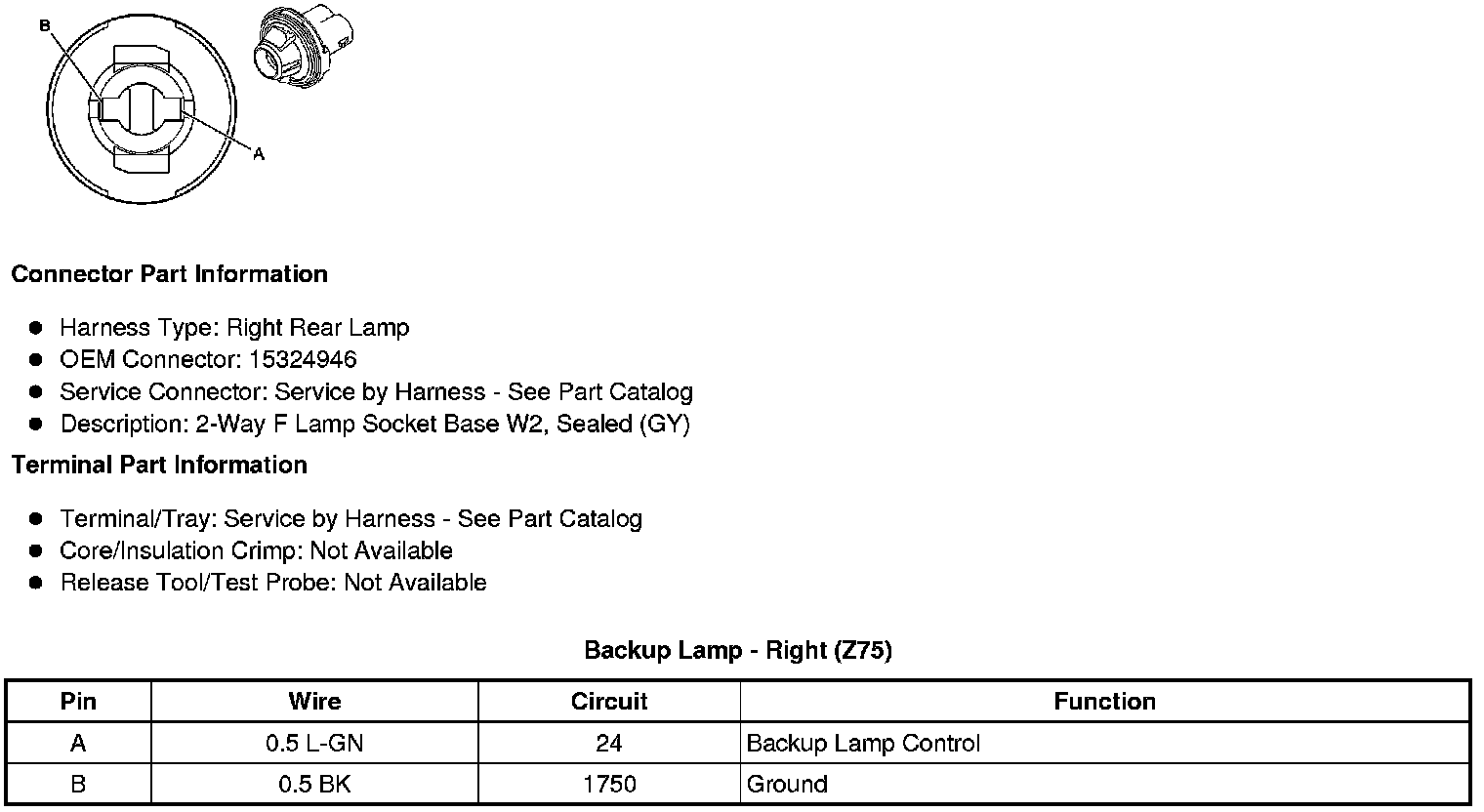

Component Connector End Views

Backup Lamp - Right (Z75)
