Door Courtesy Lamp - Passenger
Door Courtesy Lamp - Passenger
Component Connector End Views

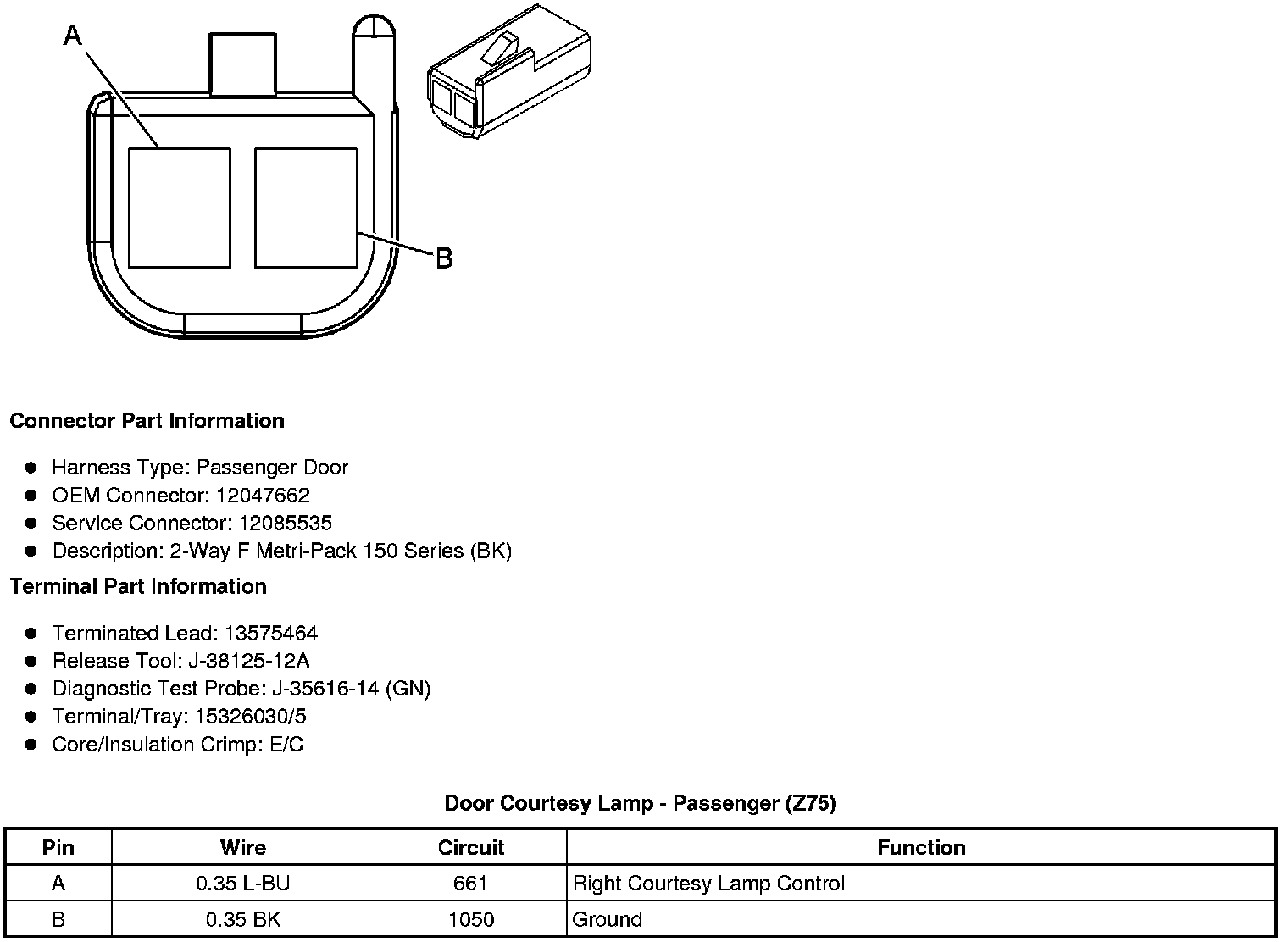

Door Courtesy Lamp - Passenger (Z75)
