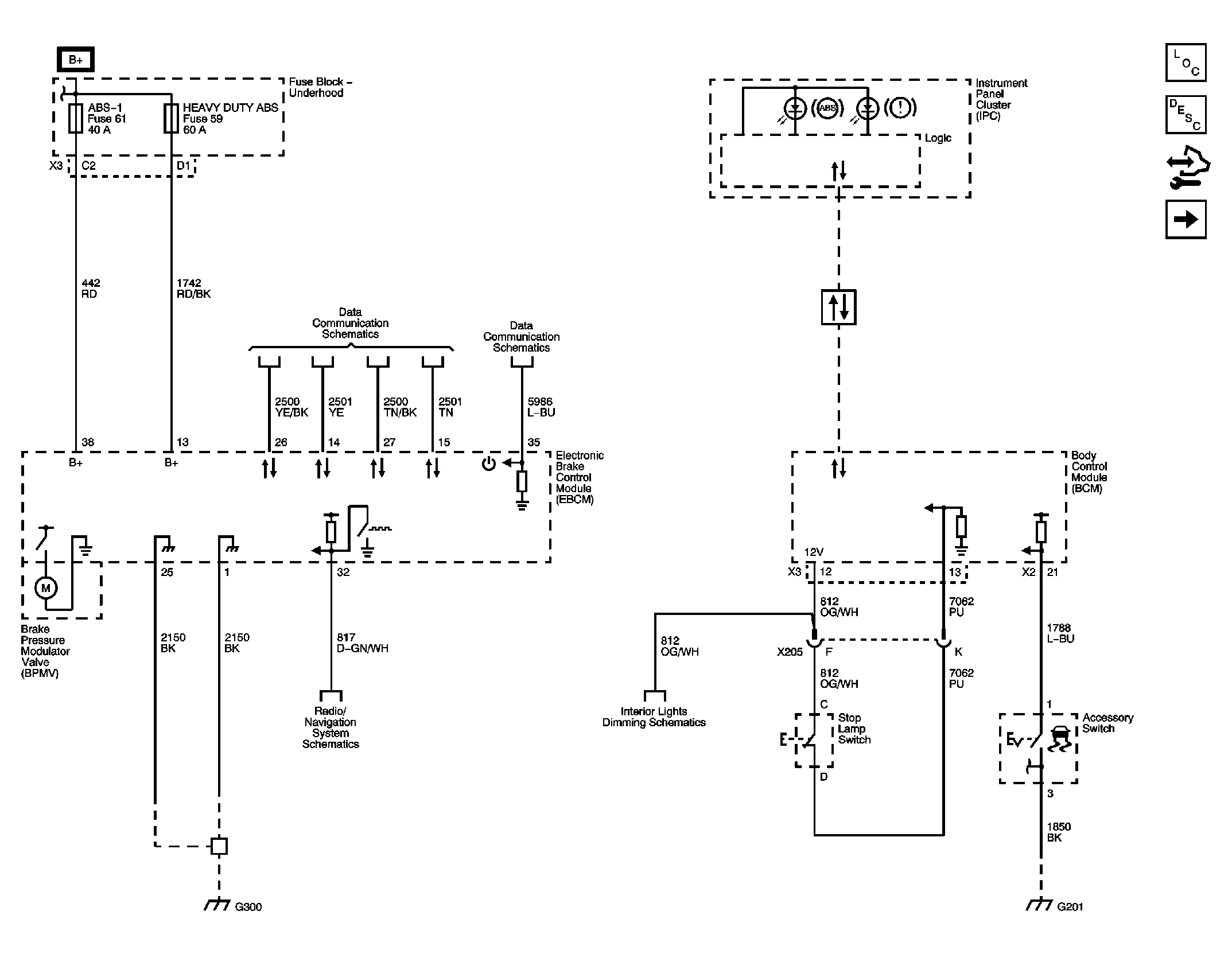

Module Power, Ground, and Serial Data, Pump Motor and Brake Switch

WARNING: This page is about a different car, the 2011 GMC Cab & Chassis Sierra, 2011 Chevrolet Suburban, and 2011 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
