Electronic Brake Control Module Replacement

WARNING: This page is about a different car, the 2011 GMC Cab & Chassis Sierra, 2011 Chevrolet Suburban, and 2011 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

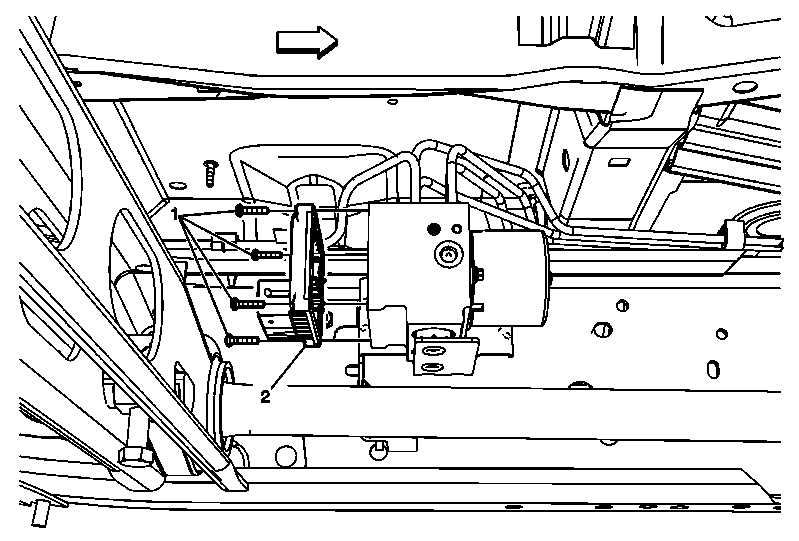

Fig 1: Electronic Brake Control Module
GM1862946Courtesy of GENERAL MOTORS CORP.
Electronic Brake Control Module Replacement

Callout Component Name
CAUTION:

Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.

Preliminary Procedures

  1. Turn the ignition switch to the OFF position.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove any dirt and debris from the area of the brake pressure modulator valve (BPMV)/electronic brake control module (EBCM) assembly.
1 EBCM Screw (Qty: 4)
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Discard the EBCM screws.
  2. Install new EBCM screws.
  3. Tighten the EBCM screws in an X pattern.

Tighten
3 N.m (27 lb in)
2 Electronic Brake Control Module (EBCM)

Procedure

  1. Disconnect the EBCM electrical connector.
  2. Carefully pull the EBCM away from the BPMV. Do not force the components apart.
  3. Clean the EBCM to BPMV sealing surfaces with denatured alcohol and allow to dry.
  4. After the installation is complete, program the EBCM. Refer to Control Module References .
