Yaw and Lateral Accelerometer Sensor (JL4 with 10 Series)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

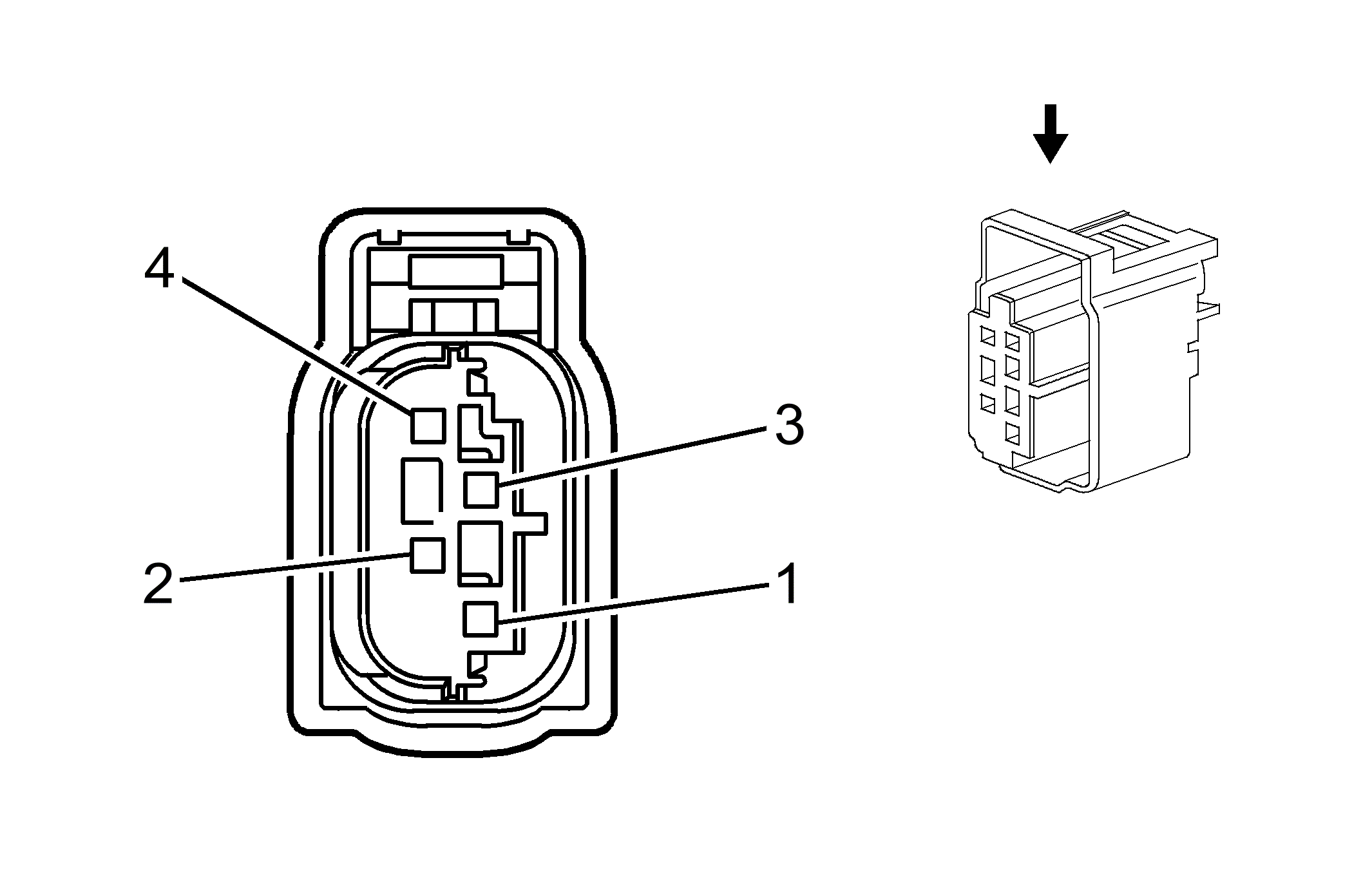

Fig 1: Yaw and Lateral Accelerometer Sensor (JL4 with 10 Series) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.5 BK/WH	2751	Low Reference
2	0.5 L-GN/BK	6432	CAN Bus Low Serial Data
3	0.5 TN/WH	6433	CAN Bus High Serial Data
4	0.5 D-GN	2087	12-Volt Reference

Connector Part Information

OEM: 13583918
Service: See Catalog
Description: 4-Way F 0.64 MQS Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 962885-5/15
Core/Insulation Crimp: 6/6
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
