Speaker - Left Front Tweeter (Except MEX)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

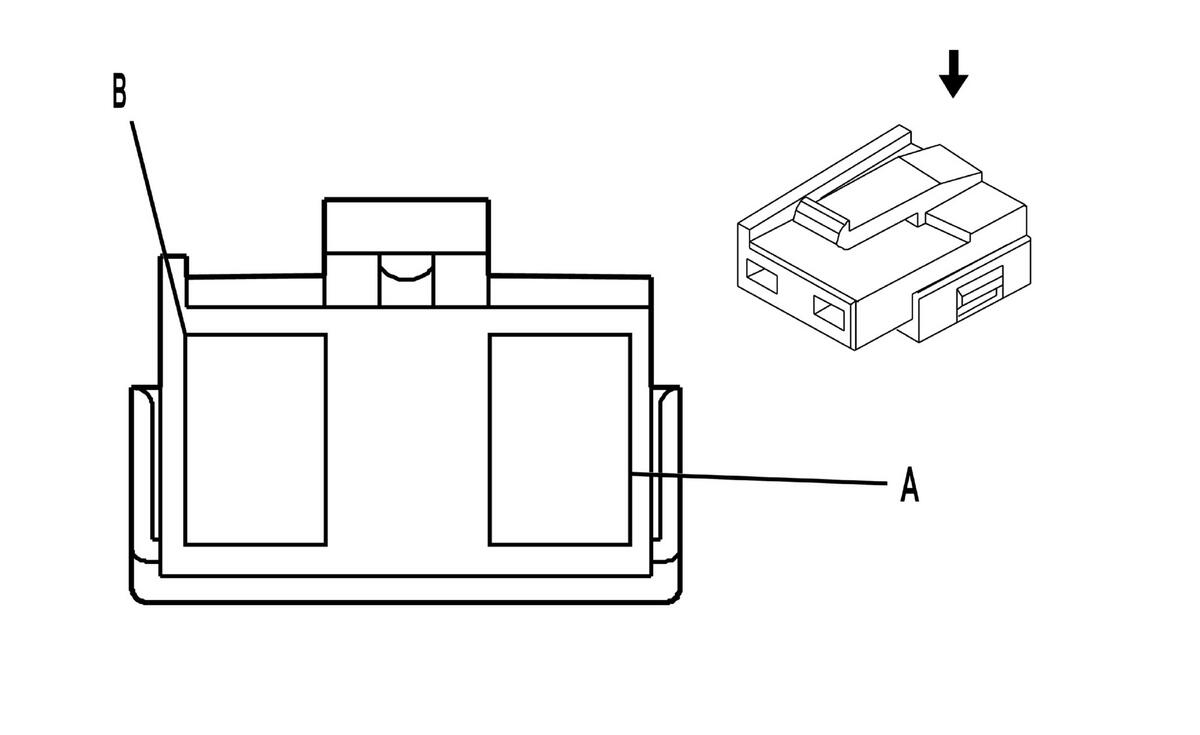

Fig 1: Speaker - Left Front Tweeter (Except MEX) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	0.8 GY	118	Left Front Speaker Output (-)
	0.8 GY	118	Left Front Speaker Output (-) (Y91)
	0.5 GY	118	Left Front Speaker Output (-) (Except Y91)
B	0.8 TN	201	Left Front Speaker Output (+)
	0.8 TN	201	Left Front Speaker Output (+) (Y91)
	0.5 TN	201	Left Front Speaker Output (+) (Except Y91)

Connector Part Information

OEM: 12015199
Service: 12101821
Description: 2-Way F Metri-Pack 280 Series (NA)

Terminal Part Information

Terminal/Tray: 12066214/2
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12094430/J-35616-4A (PU)
