Seat Adjuster Motor Assembly - Driver X2 (AN3)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

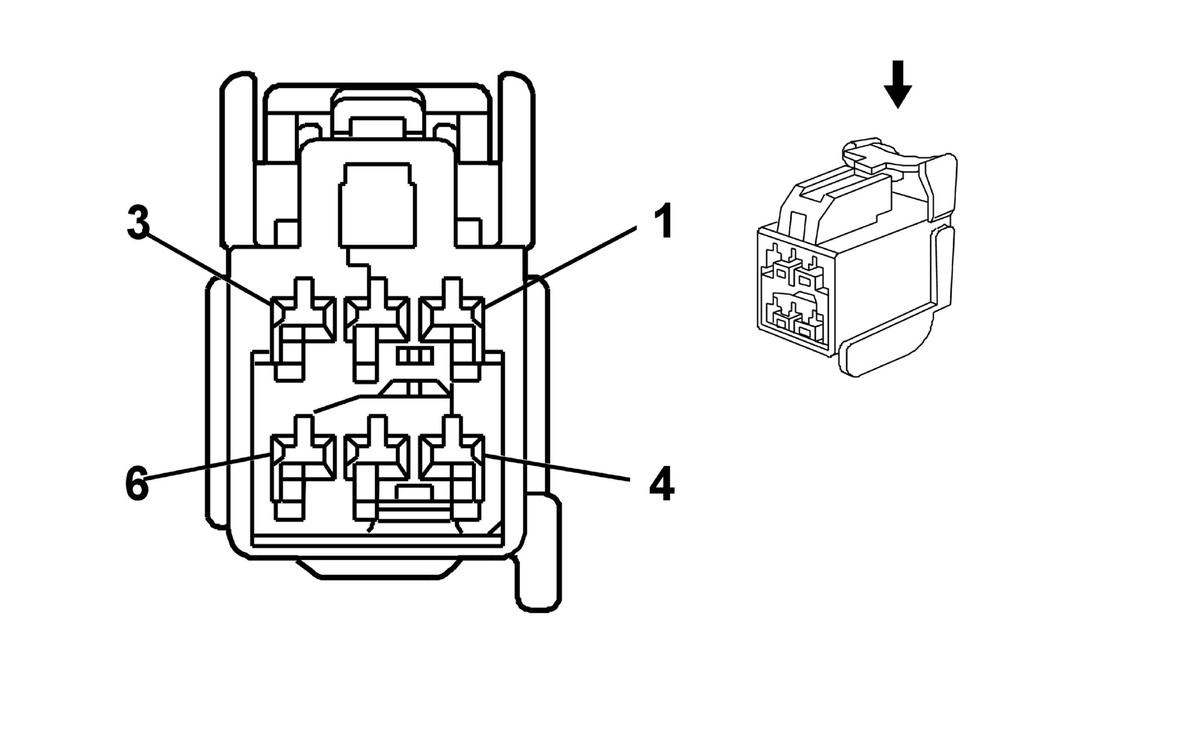

Fig 1: Seat Adjuster Motor Assembly - Driver X2 (AN3) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 BN/WH	557	Front Vertical Motor Position Sensor Signal
2	0.35 GY	6206	Low Reference
3	0.35 D-GN	569	Horizontal Motor Position Sensor Signal
4	-	-	Not Used
5	0.35 TN	568	Rear Vertical Motor Position Sensor Signal
6	0.35 TN	6207	5-Volt Reference

Connector Part Information

OEM: 7283-6454-40
Service: See Catalog
Description: 6-Way F (GY)

Terminal Part Information

Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)
