Park/Turn Signal Lamp - Lower Left

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

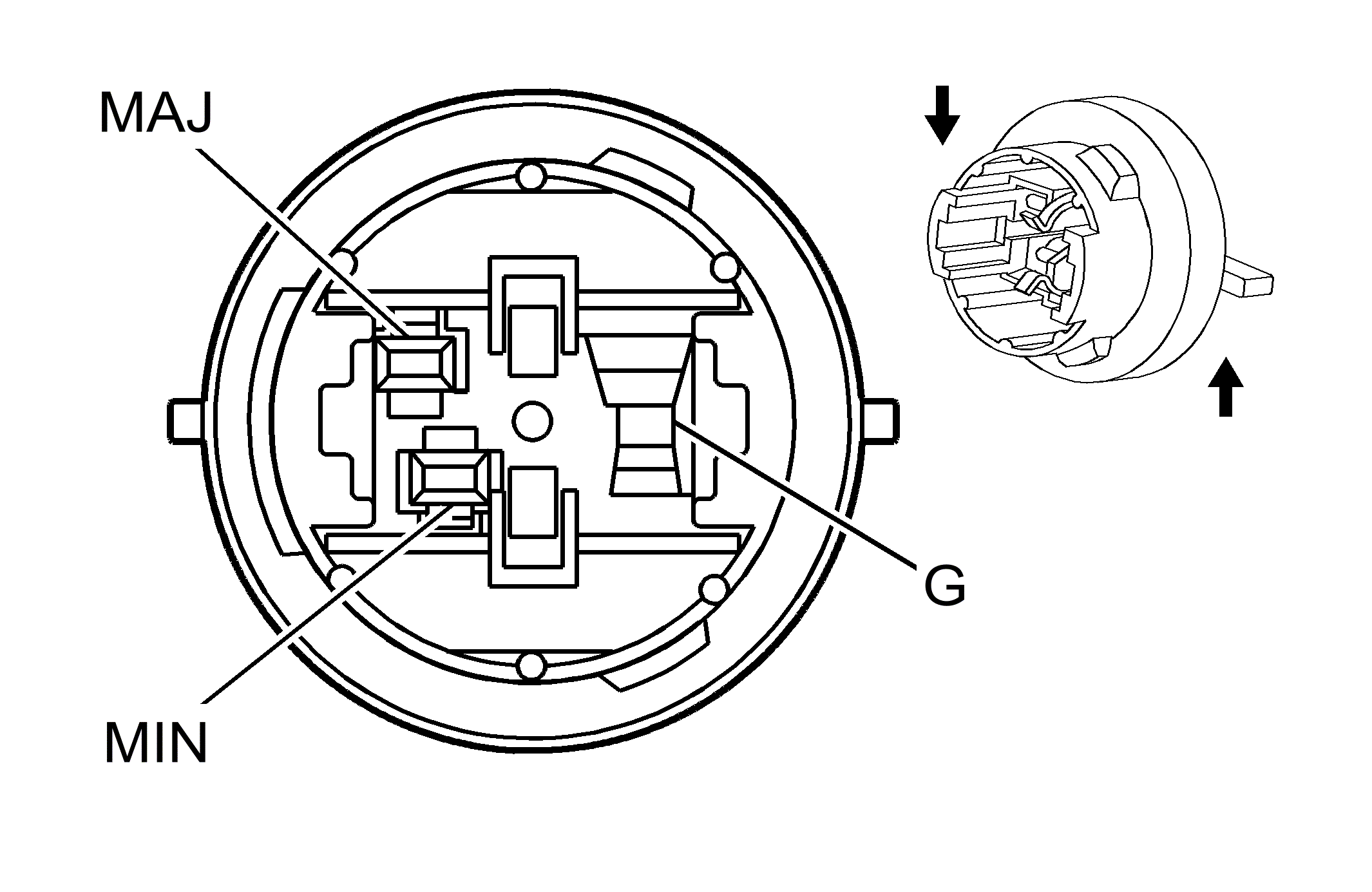

Fig 1: Park/Turn Signal Lamp - Lower Left Connector End View
GM1914601Courtesy of GENERAL MOTORS CORP.
Park/Turn Signal Lamp - Lower Left

Pin Wire Circuit Function
MIN 1 L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage (X88)
1 BN 1314 Left Front Turn Signal Lamp Supply Voltage (Z88)
MAJ 0.8 BN 2509 Left Front Park Lamps Supply Voltage (X88)
0.8 BN 2509 Left Front Park Lamps Supply Voltage (X88)
0.8 L-GN 2509 Left Front Park Lamps Supply Voltage (Z88)
0.8 L-GN 2509 Left Front Park Lamps Supply Voltage (Z88)
G 0.8 BK 150 Ground (X88)
0.8 BK 150 Ground
Connector Part Information
  • OEM: 0001035
  • Service: See Catalog
  • Description: 3-Way F W3 Socket Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
