Outside Rearview Mirror - Driver (DL8/DPN)
WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

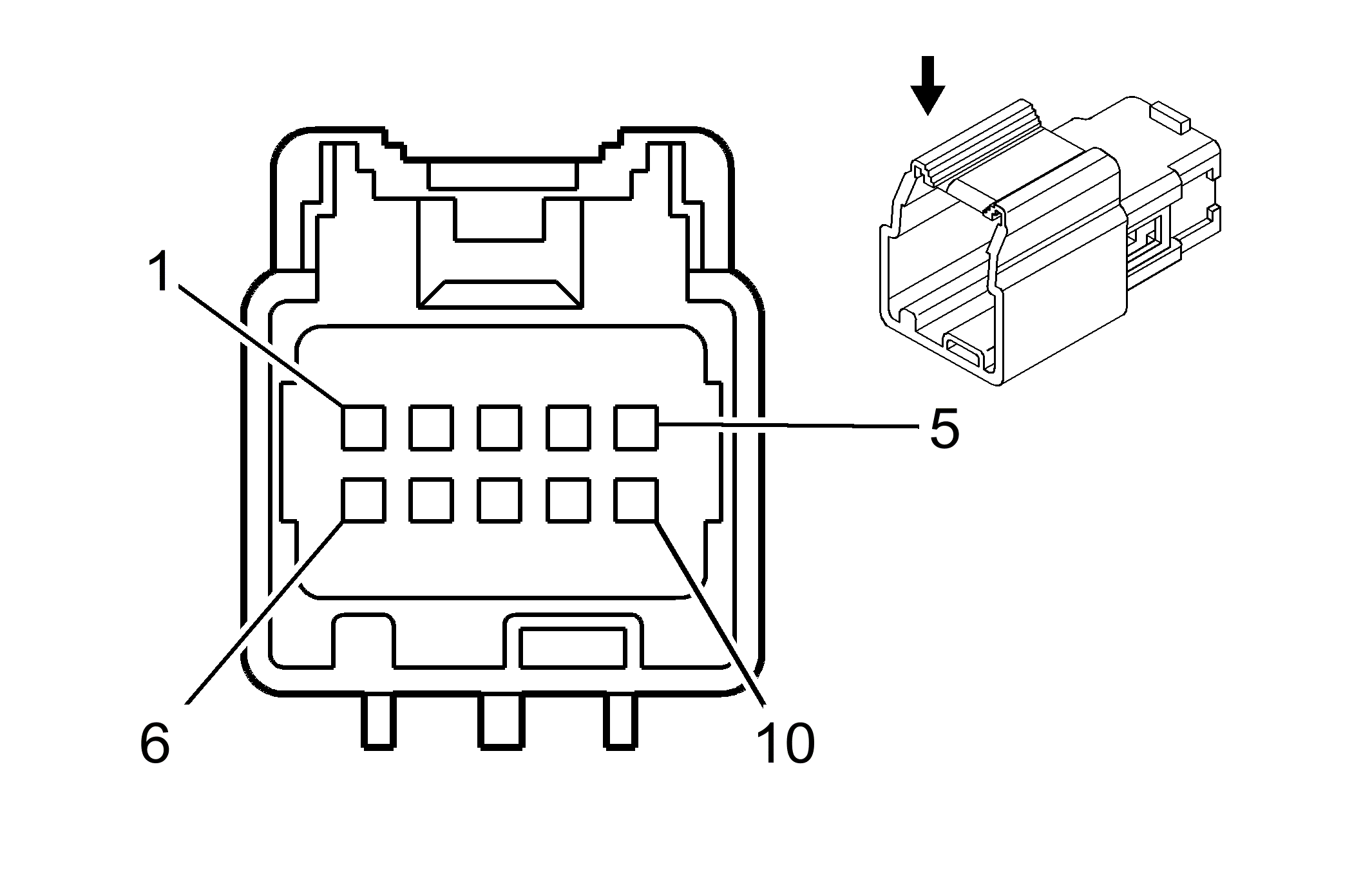

Outside Rearview Mirror - Driver (DL8/DPN)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.5 L-GN | 89 | Driver Mirror Motor Down Control (DL8/DPN) |
| 2 | 0.5 WH | 81 | Driver Mirror Motor Right Control (DL8/DPN) |
| 3 | 0.5 BK | 1850 | Ground (DL8/DPN) |
| 4 | - | - | Not Used |
| 5 | 0.5 L-BU/WH | 1314 | Left Front Turn Signal Lamp Supply Voltage (DL3/DPN) |
| 6 | 0.5 TN | 329 | Driver Mirror Motor Supply Voltage (DL8/DPN) |
| 7 | 0.5 OG | 2267 | Mirror Heating Element Supply Voltage (DL8/DPN) |
| 8-9 | - | - | Not Used |
| 10 | 0.5 BK | 1850 | Ground (DL3/DPN) |
Connector Part Information
|
Terminal Part Information
|
