Intake Air Heater (IAH) X1 (Diesel)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

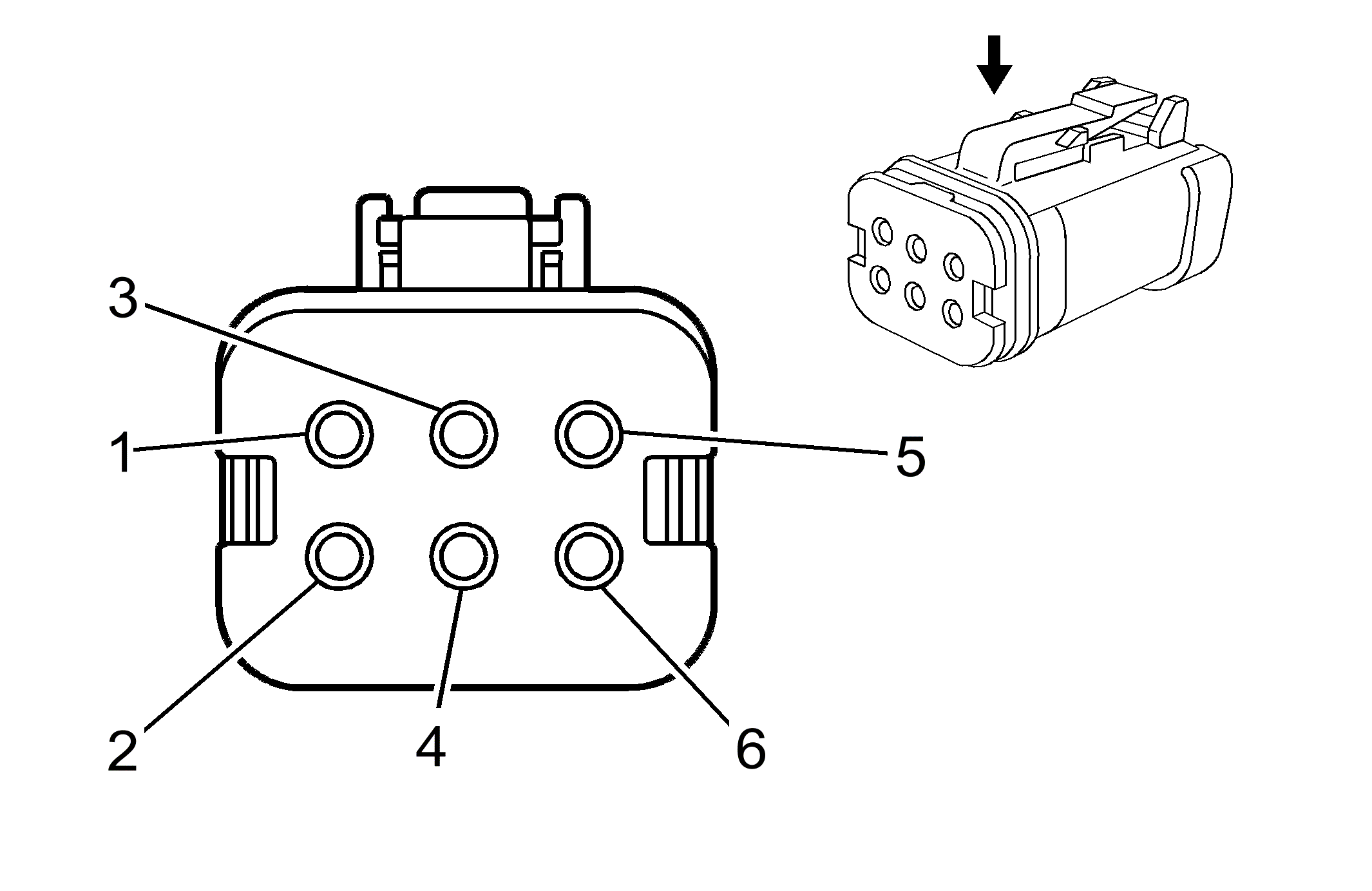

Fig 1: Intake Air Heater (IAH) X1 (Diesel) Connector End View
GM1583743Courtesy of GENERAL MOTORS CORP.
Intake Air Heater (IAH) X1 (Diesel)

Pin Wire Circuit Function
1 0.75 BK IC180 IAH Temperature Signal
2 1 OG IC181 IAH Command 1
3 0.75 YE IC182 IAH Command 2
4 0.75 PK IC183 IAH Current Signal
5 0.75 TN IC184 IAH Voltage Signal
6 0.75 RD IC185 IAH Feedback Signal
Connector Part Information
  • OEM: DT16-6S-KP01
  • Service: See Catalog
  • Description: 6-Way F Sealed (GN)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
