Generator Battery Vent Fan Relay (HP2)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

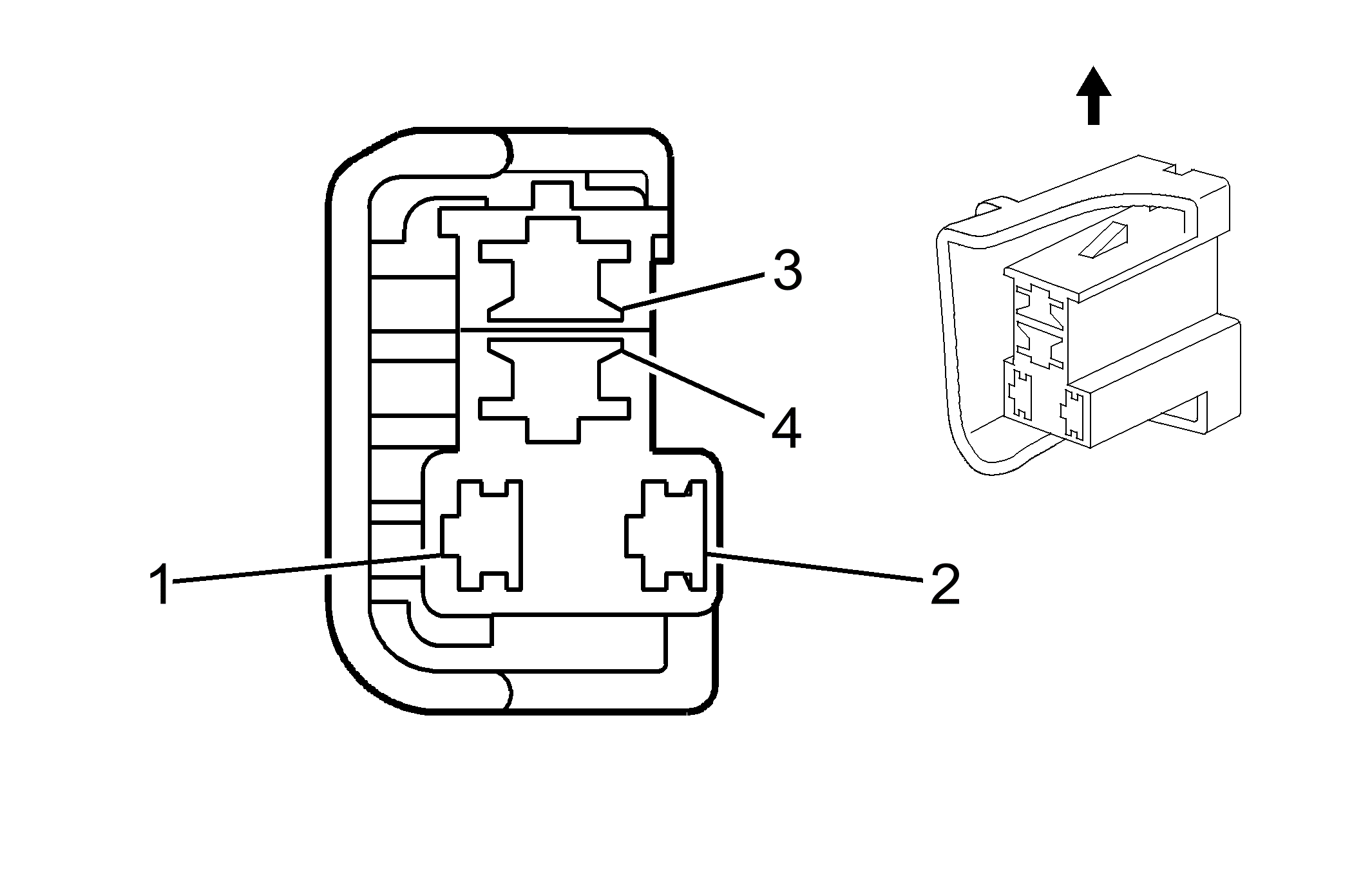

Fig 1: Generator Battery Vent Fan Relay (HP2) Connector End View
GM2001252Courtesy of GENERAL MOTORS CORP.
Generator Battery Vent Fan Relay (HP2)

Pin Wire Circuit Function
1 WH/GN - Relay Control
2 RD/WH - Battery Positive Voltage
3 RD/WH - Battery Positive Voltage
4 PK/D-BU - Fan Motor Power Feed
Connector Part Information
  • OEM: See Catalog
  • Service: See Catalog
  • Description: 4-Way F (WH)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
