Fuel Heater (Diesel)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

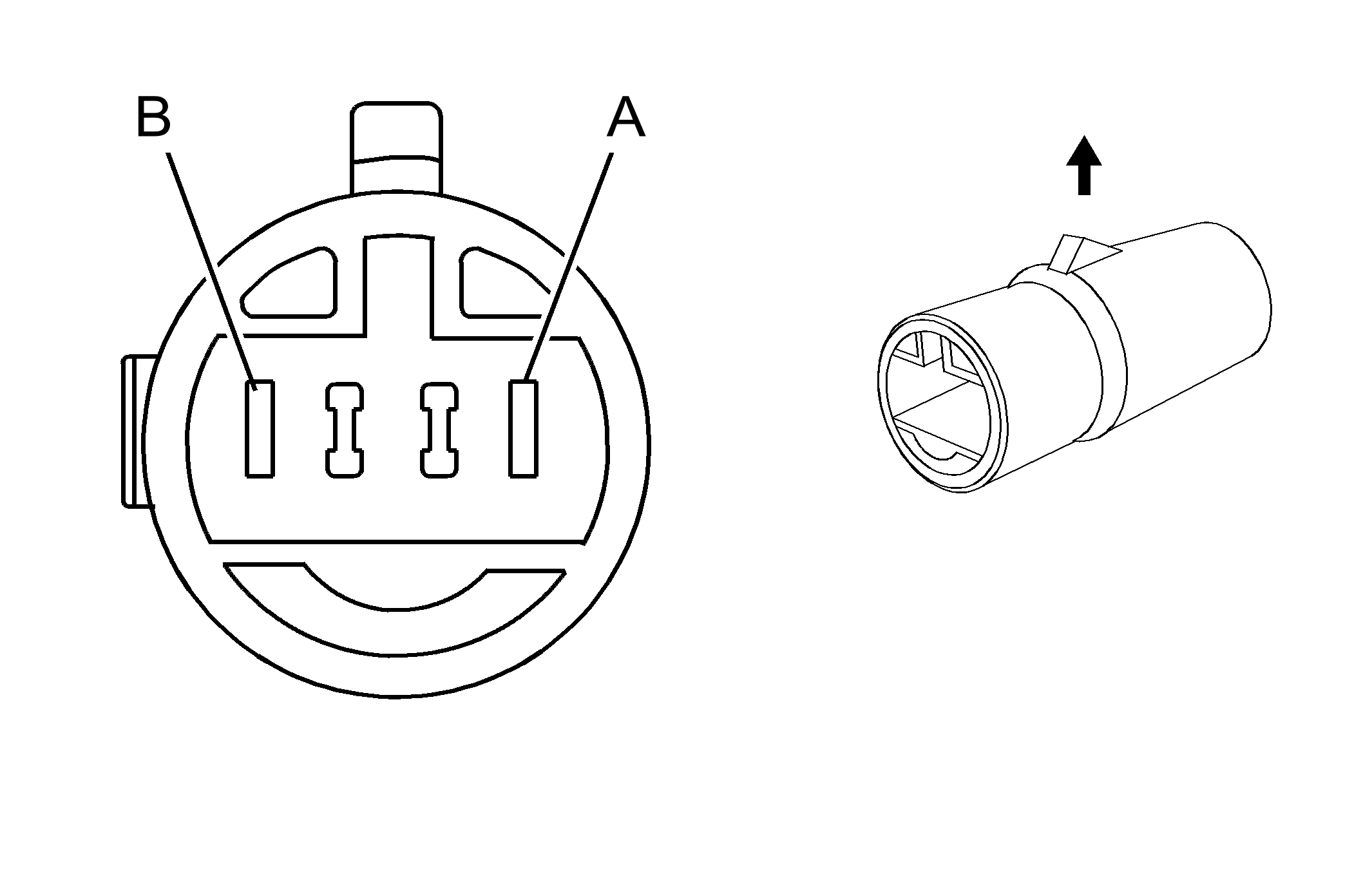

Fig 1: Fuel Heater (Diesel) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	0.85 PK	IC95	Ignition 1 Voltage
B	0.85 BK	IC96	Ground

Connector Part Information

OEM: 7318-3324-30
Service: See Catalog
Description: 2-Way F (BK)

Terminal Part Information

Terminal/Tray: 7114-1050/4
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-5 (PU)
