Fog Lamp - Left Front (T96)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

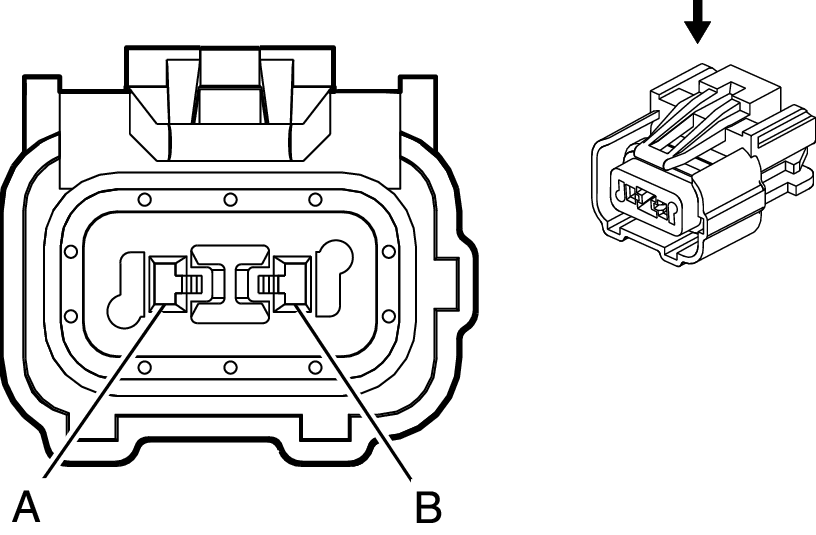

Fig 1: Fog Lamp - Left Front (T96) Connector End View
GM1711019Courtesy of GENERAL MOTORS CORP.
Fog Lamp - Left Front (T96)

Pin Wire Circuit Function
A 0.8 PU 2234 Front Fog Lamp Supply Voltage
B 0.8 BK 150 Ground
Connector Part Information
  • OEM: 15489797
  • Service: See Catalog
  • Description: 2-Way F 150 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 15496531/8
  • Core/Insulation Crimp: 2/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
