Engine Oil Pressure (EOP) Sensor (Gas Except 4.3L)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

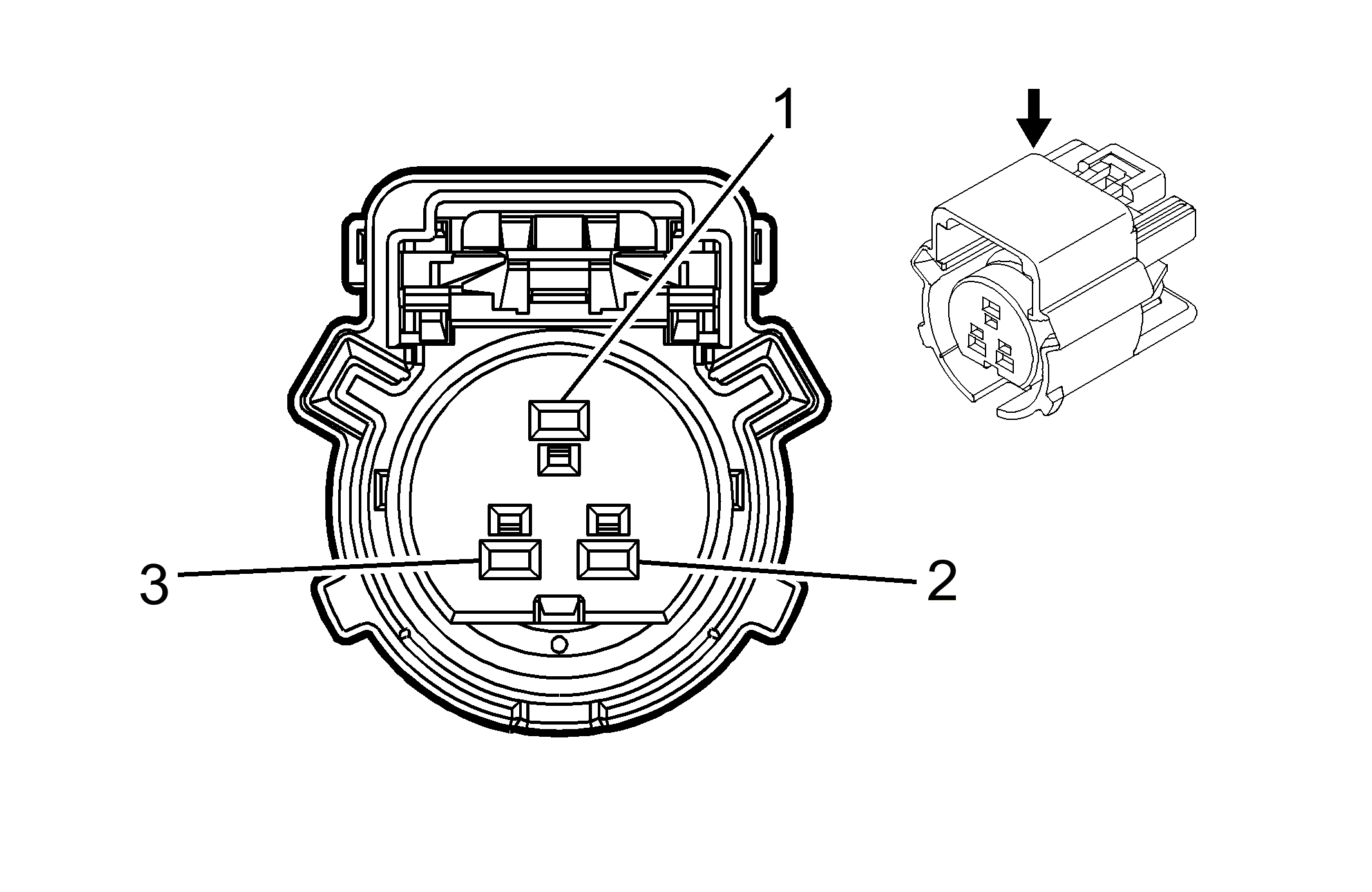

Fig 1: Engine Oil Pressure (EOP) Sensor (Gas Except 4.3L) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.5 TN/WH	331	Oil Pressure Sensor Signal
2	0.5 GY	2705	5-Volt Reference
3	0.5 BK	2755	Low Reference

Connector Part Information

OEM: 13589761
Service: See Catalog
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)
