Brake Master Cylinder Piston Position Sensor (HP2)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

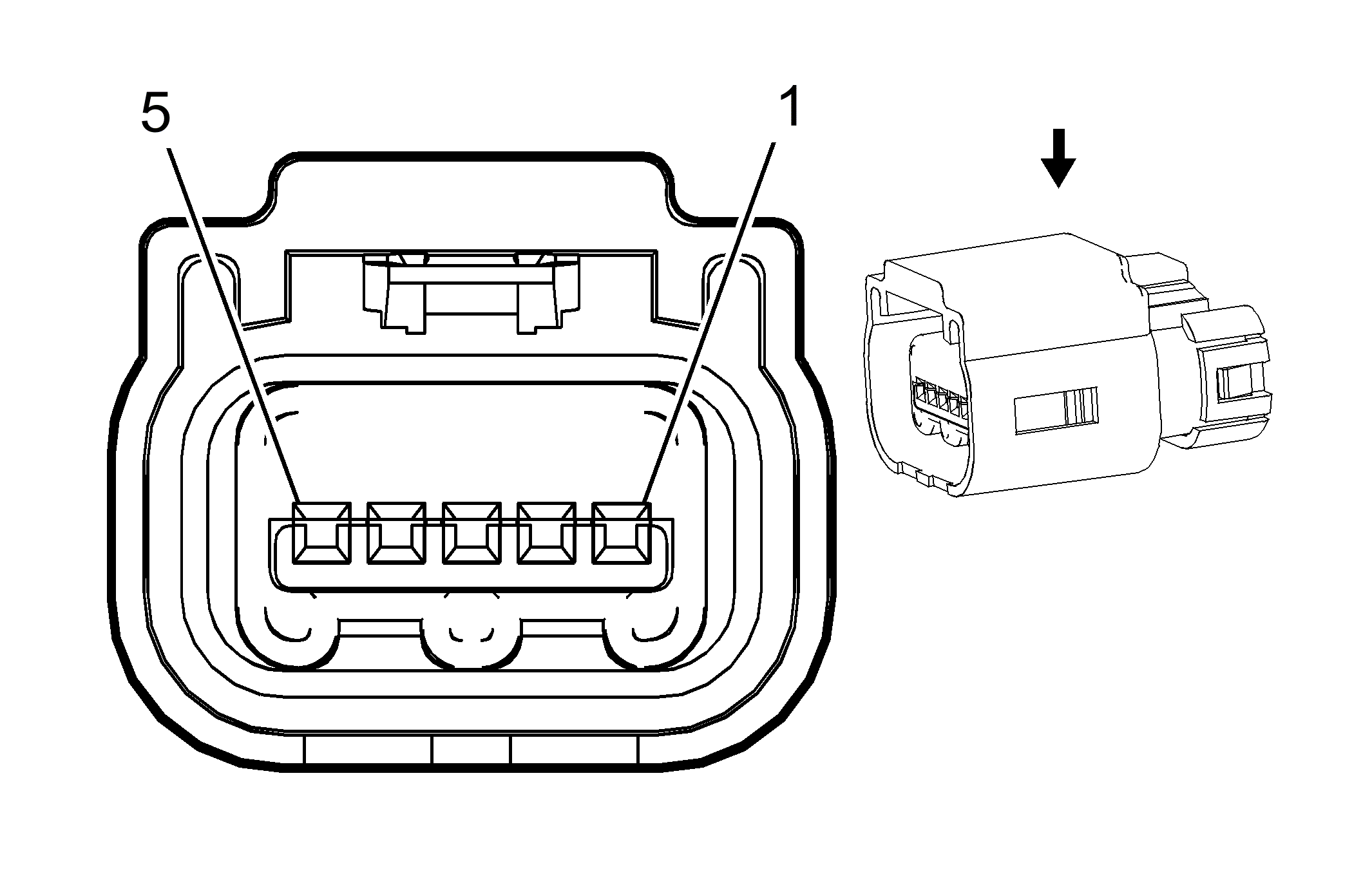

Fig 1: Brake Master Cylinder Piston Position Sensor (HP2) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.5 RD/BK	912	Pedal Travel Sensor Signal B
2	0.5 RD/BK	910	5-Volt Reference
3	0.5 RD/BK	911	Pedal Travel Sensor Signal A
4	0.5 OG/BK	6045	Low Reference
5	-	-	Not Available

Connector Part Information

OEM: 13509357
Service: See Catalog
Description: 5-Way F Kaizen 0.64 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: SAITS-A03T-M064/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215A/J-35616-64B (L-BU)
