Backup Lamp - Right

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

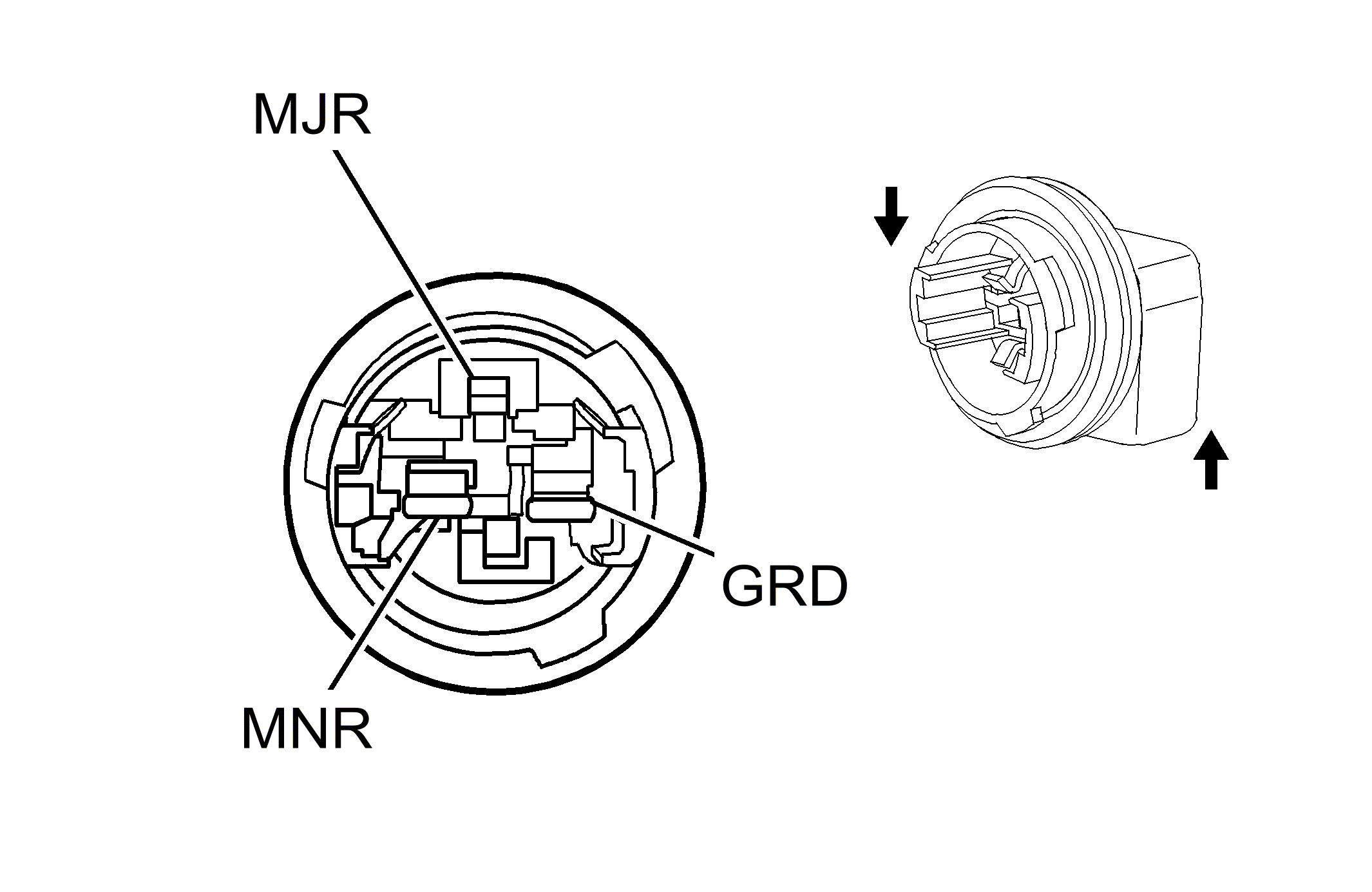

Fig 1: Backup Lamp - Right Connector End View
GM1914597Courtesy of GENERAL MOTORS CORP.
Backup Lamp - Right

Pin Wire Circuit Function
MJR 0.8 L-GN 24 Backup Lamps Supply Voltage
MNR - - Not Used
GRD 0.8 BK 2150 Ground
0.8 BK 2150 Ground
Connector Part Information
  • OEM: 1014005
  • Service: See Catalog
  • Description: 3-Way F W3 Socket Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
