Heated/Cooled Seat Schematics

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

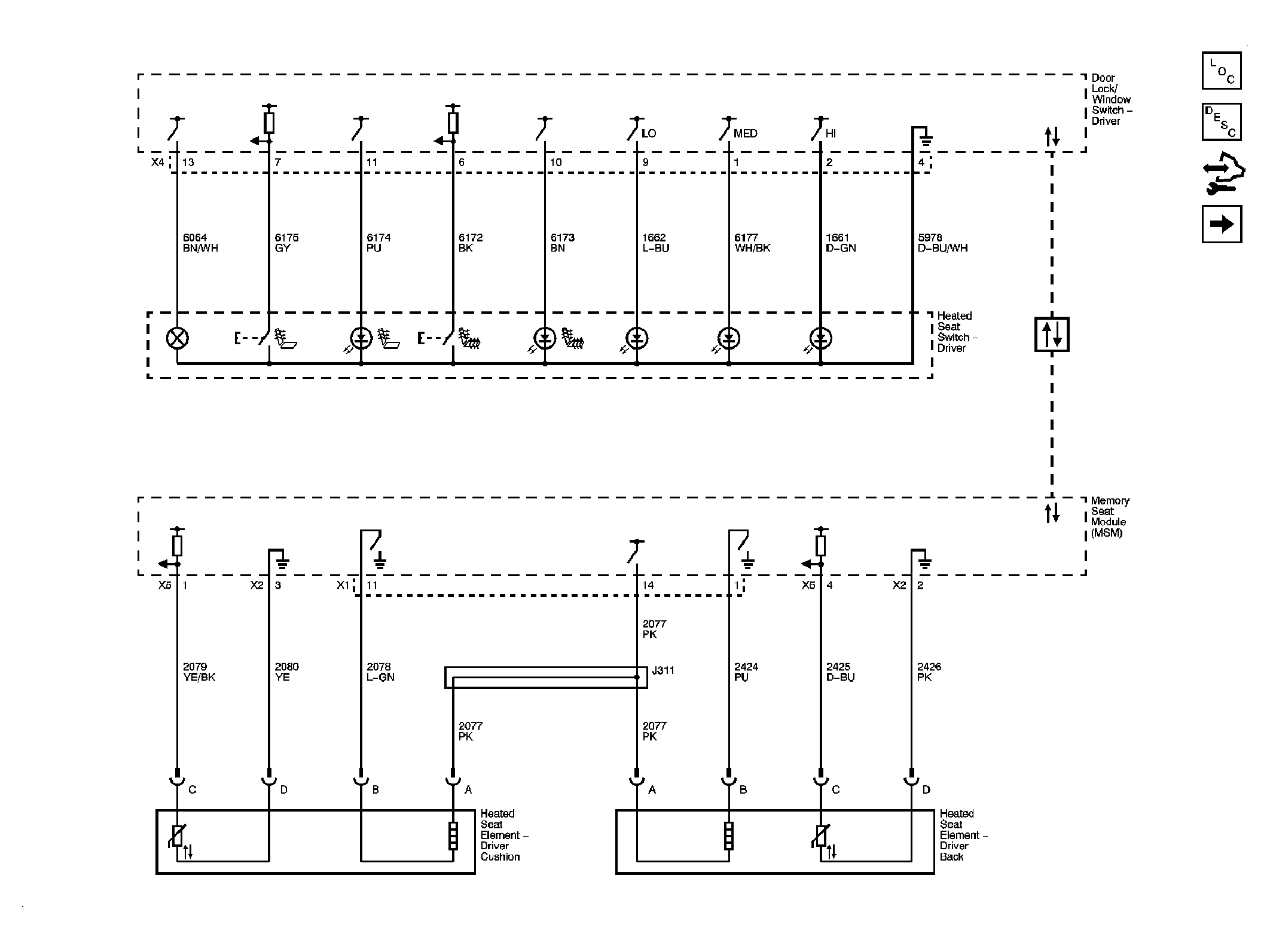

Fig 1: Heated Seat Circuit Schematic - Driver (AN3 without KB6)

Courtesy of GENERAL MOTORS CORP.

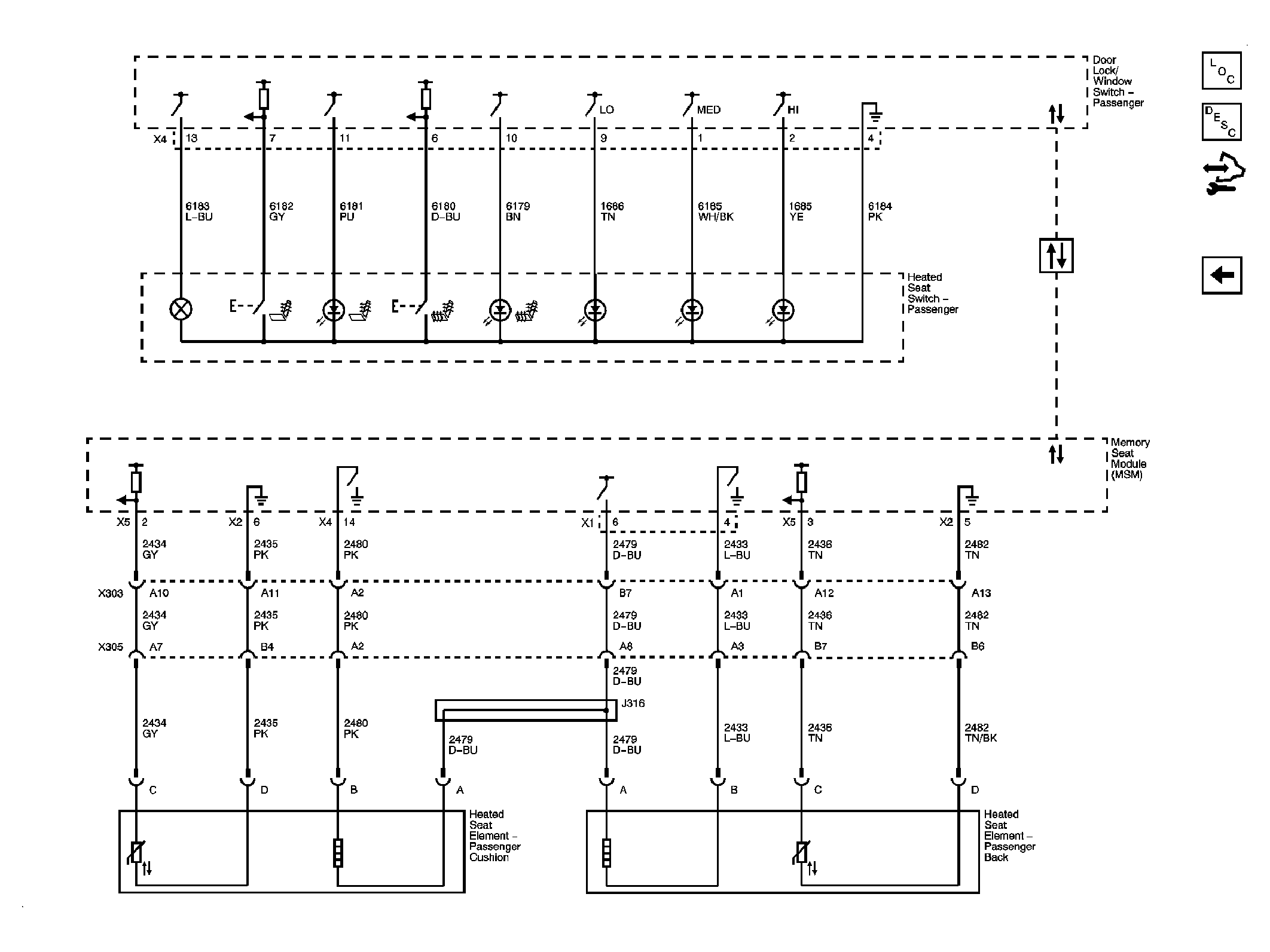

Fig 2: Heated Seat Circuit Schematic - Passenger (AN3 without KB6)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Heated/Cooled Seat Module Power & Ground Circuit Schematic (KB6)

Courtesy of GENERAL MOTORS CORP.

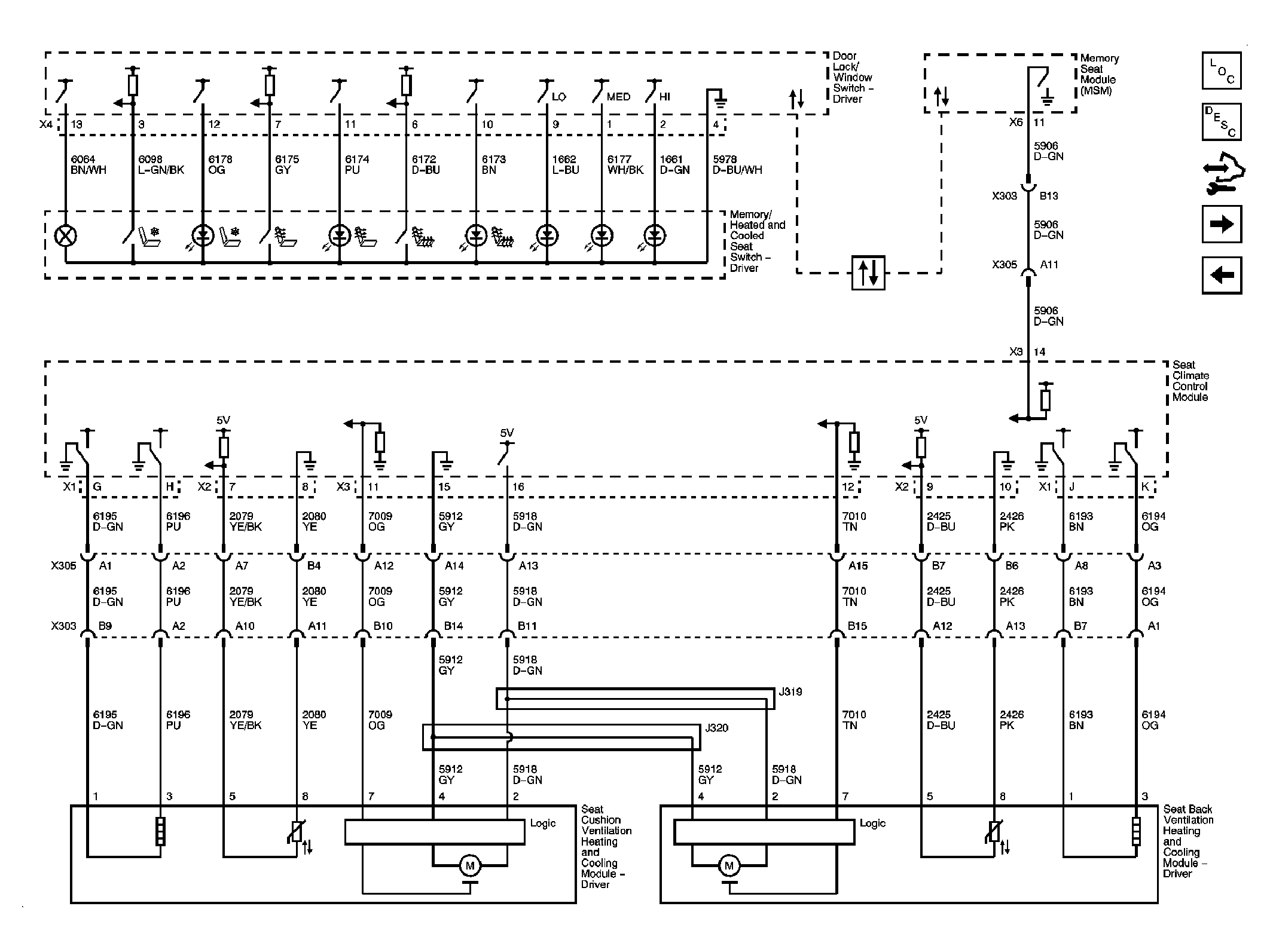

Fig 4: Heated/Cooled Seat Circuit Schematic - Driver (KB6)

Courtesy of GENERAL MOTORS CORP.

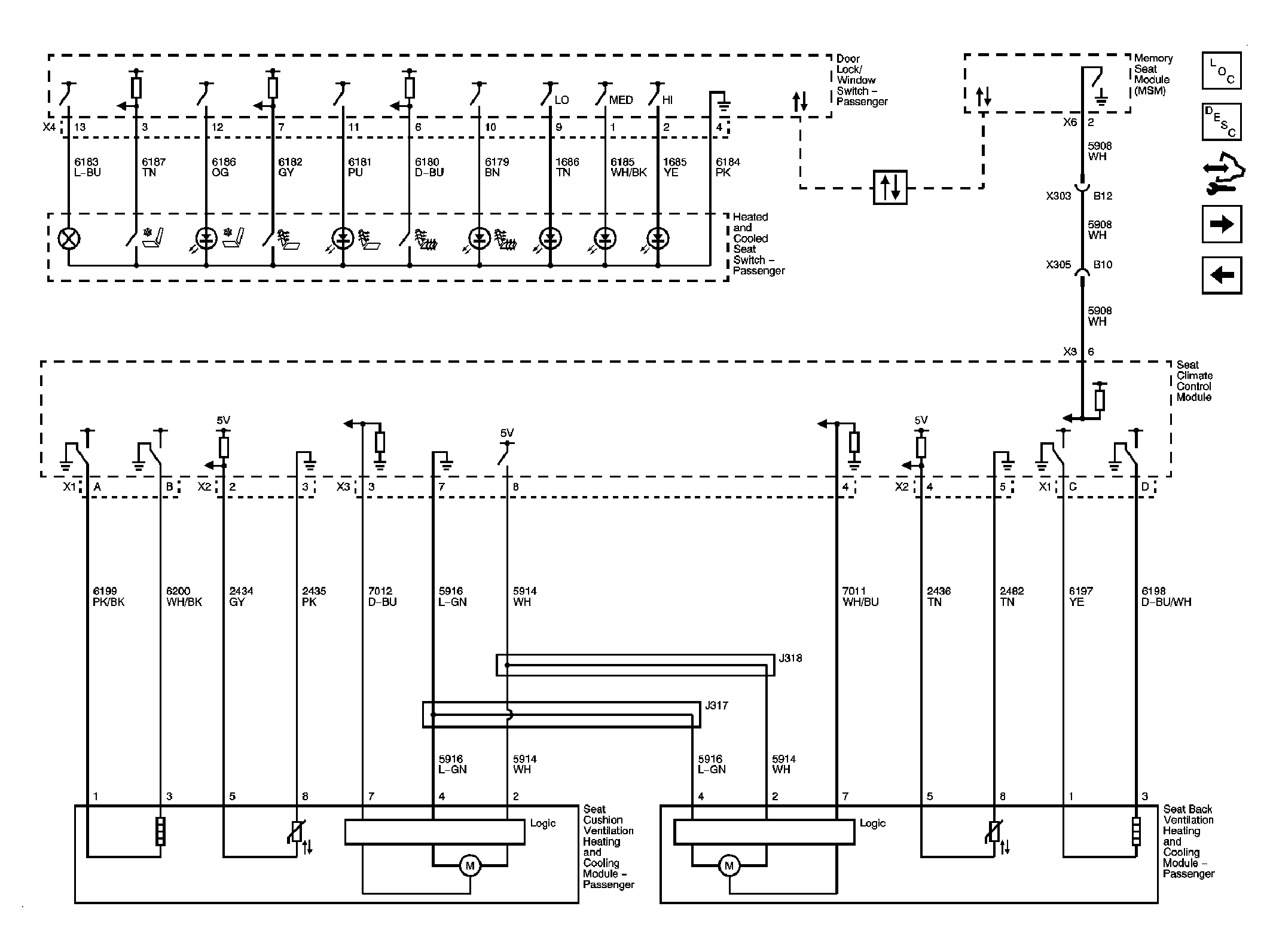

Fig 5: Heated/Cooled Seat Circuit Schematic - Passenger - (KB6)

Courtesy of GENERAL MOTORS CORP.
