Body Lock Pillar Trim Replacement (Extended Cab)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

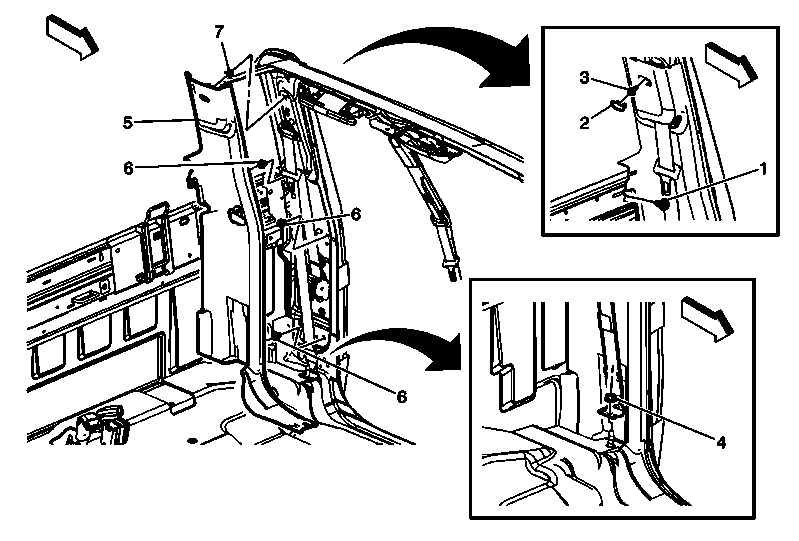

Fig 1: View Of Body Lock Pillar Trim (Extended Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove rear side door sill plate. Refer to Front Side Door Sill Trim Plate Replacement (Extended Cab) or Front Side Door Sill Trim Plate Replacement (Regular Cab/Crew Cab) . Remove rear window lower molding. Refer to Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/A48) , Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/o A48) or Rear Window Lower Garnish Molding Replacement (Regular Cab) .
1	Body Lock Pillar Garnish Molding Retainer
2	Body Lock Pillar Garnish Molding Plug
3	Body Lock Pillar Garnish Molding Screw CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
4	Seat Belt Assembly Anchor Nut Tighten: 70 N.m (52 lb ft)
5	Front Seat Shoulder Belt Retractor Assembly Refer to Seat Belt Retractor Pretensioner Replacement - Front (Regular Cab) , Seat Belt Retractor Pretensioner Replacement - Front (Extended Cab) or Seat Belt Retractor Pretensioner Replacement - Front (Crew Cab) .
6	Body Lock Pillar Garnish Molding Assembly Tip: Route seat belt through garnish molding.
7	Body Lock Pillar Garnish Molding Retainer (Qty: 3)
8	Body Lock Pillar Garnish Molding Clip
