Radiator Surge Tank Inlet Hose/Pipe Replacement (HP2)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

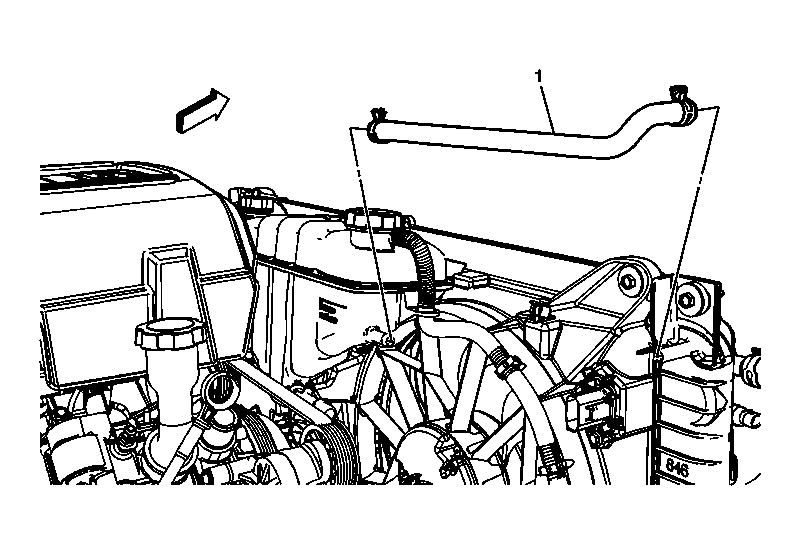

Fig 1: View Of Radiator Surge Tank Inlet Hose/Pipe (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Partially drain the cooling system. Refer to Cooling System Draining and Filling (Vac-N-Fill) or Cooling System Draining and Filling (Static Fill) .
1	Radiator Surge Tank Inlet Hose/Pipe Tip: Using J 38185 reposition the radiator surge tank inlet hose/pipe clamps. See Special Tools . Special Tools: J 38185 Surge Tank Inlet Hose/Pipe. See Special Tools .
