Radiator Outlet Hose Replacement (HP2)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

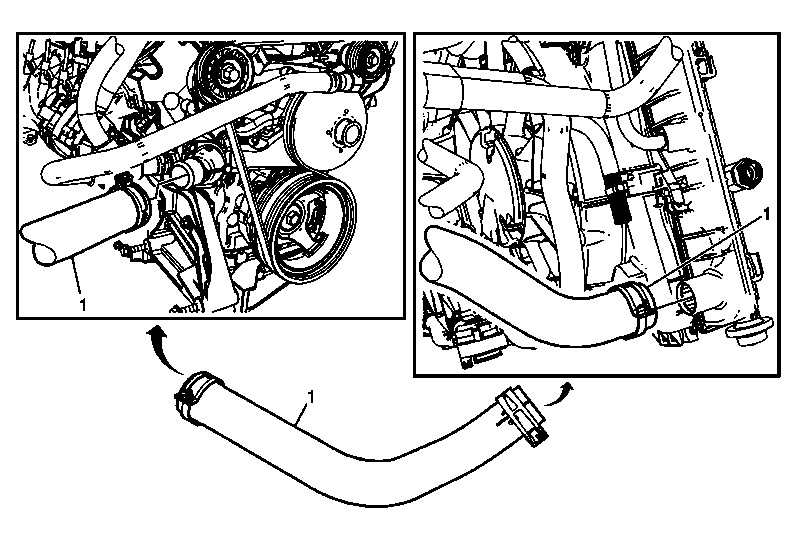

Fig 1: View Of Radiator Outlet Hose (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Vac-N-Fill) or Cooling System Draining and Filling (Static Fill) . Remove the air cleaner resonator duct. Refer to Air Cleaner Resonator Outlet Duct Replacement . Remove air cleaner housing. Refer to Air Cleaner Assembly Replacement .
1	Radiator outlet hose Tip: Using J 38185 reposition the radiator outlet hose clamps. See Special Tools .

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (Vac-N-Fill) or Cooling System Draining and Filling (Static Fill) .
Remove the air cleaner resonator duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
Remove air cleaner housing. Refer to Air Cleaner Assembly Replacement .

Radiator outlet hose
Tip: Using J 38185 reposition the radiator outlet hose clamps. See Special Tools .
