Control Valve Body Assembly Installation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Cadillac Escalade EXT. However, it is still accessible from the selected car via links, so may be relevant.

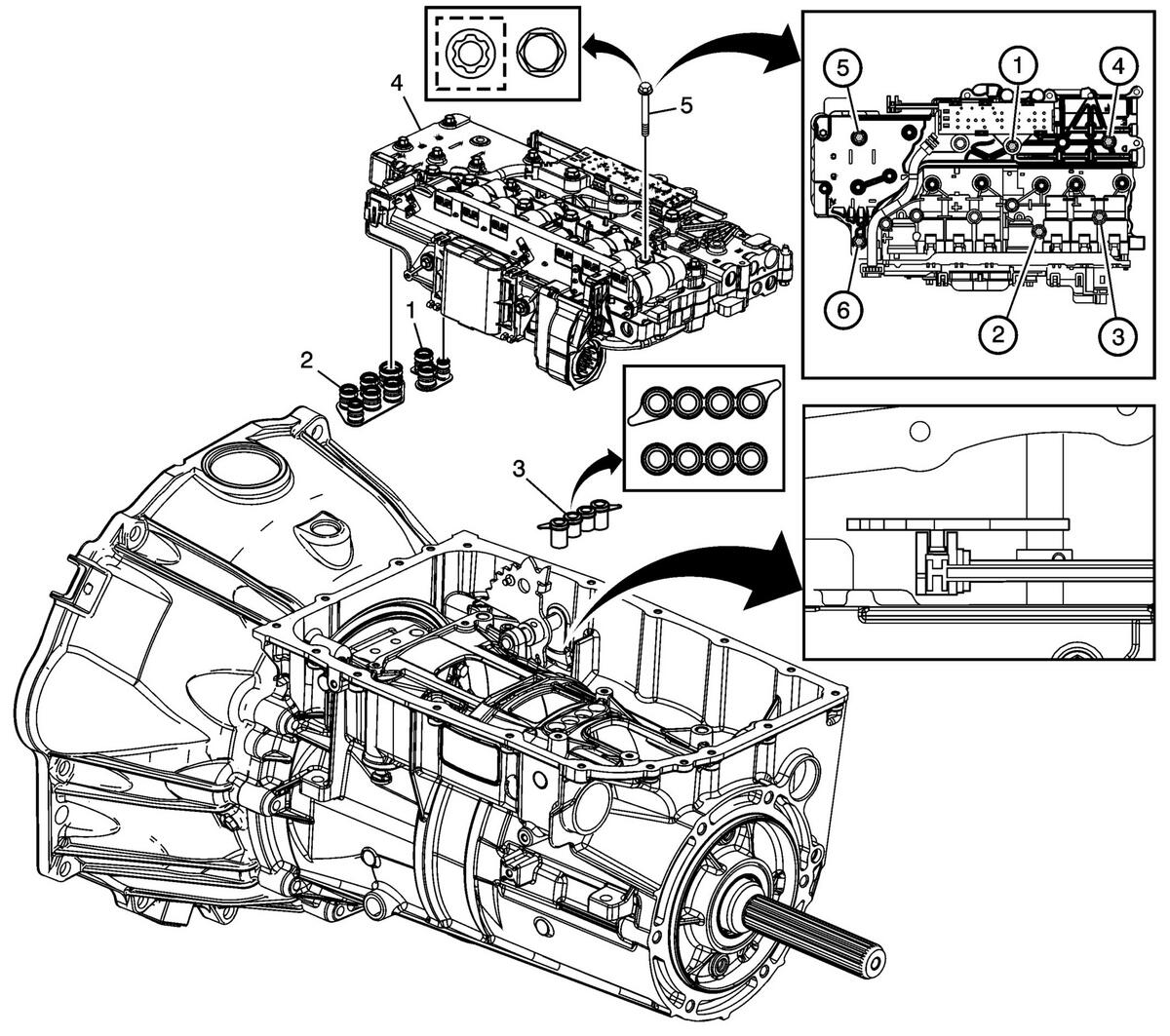

| Callout | Component Name |
|---|---|
| 1 | NEW Fluid Pump Seal Assembly |
| 2 | NEW Fluid Pump Seal Assembly |
| 3 | NEW Center Support Fluid Passage Seal Assembly |
| 4 | Control Valve Body Assembly Tip: Align the manual shift shaft position switch activator slide with the detent lever guide pin. |
| 5 | Bolts M5 x 73 (Qty: 6)
NOTE:
Refer to Fastener Notice
. Procedure: Tighten in the sequence shown. Tighten: 8 N.m (71 lb in). Special Tool: DT-48285 Valve Body Torx Plus Socket (if applicable). See Special Tools . |
