Control Solenoid Valve Assembly Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Cadillac Escalade EXT. However, it is still accessible from the selected car via links, so may be relevant.

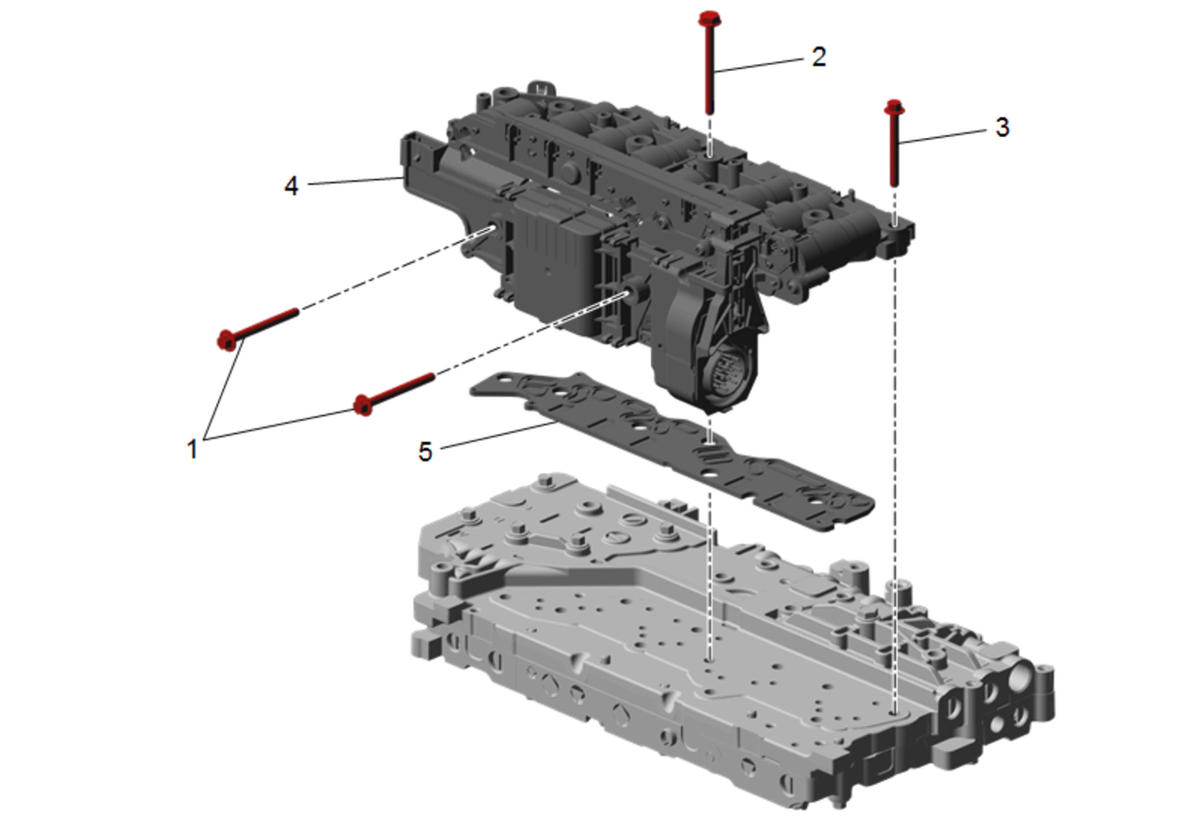

Fig 1: View Of Control Solenoid Valve Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bolt M5 x 53 (Qty: 2)
2	Bolt M5 x 55 (Qty: 4)
3	Bolt M5 x 45 (Qty: 5)
4	Control Solenoid (w/Body and TCM) Valve Assembly NOTE: Use care when handling the control valve body assembly. If dropped, damage to the control solenoid valve body assembly internal components, including the transmission control module (TCM), may result.
5	Filter Plate Assembly NOTE: Use care when removing or installing the filter plate assembly. A broken or missing retaining tab may not adequately secure the filter plate to the control solenoid valve assembly, resulting in possible damage or contamination. NOTE: Discard the filter plate. Replace with a NEW filter plate. Reusing an old filter plate may cause damage to the control solenoid valve assembly.
