Input and Output Speed Sensor Assembly Installation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Cadillac Escalade EXT. However, it is still accessible from the selected car via links, so may be relevant.
Input and Output Speed Sensor Assembly Installation

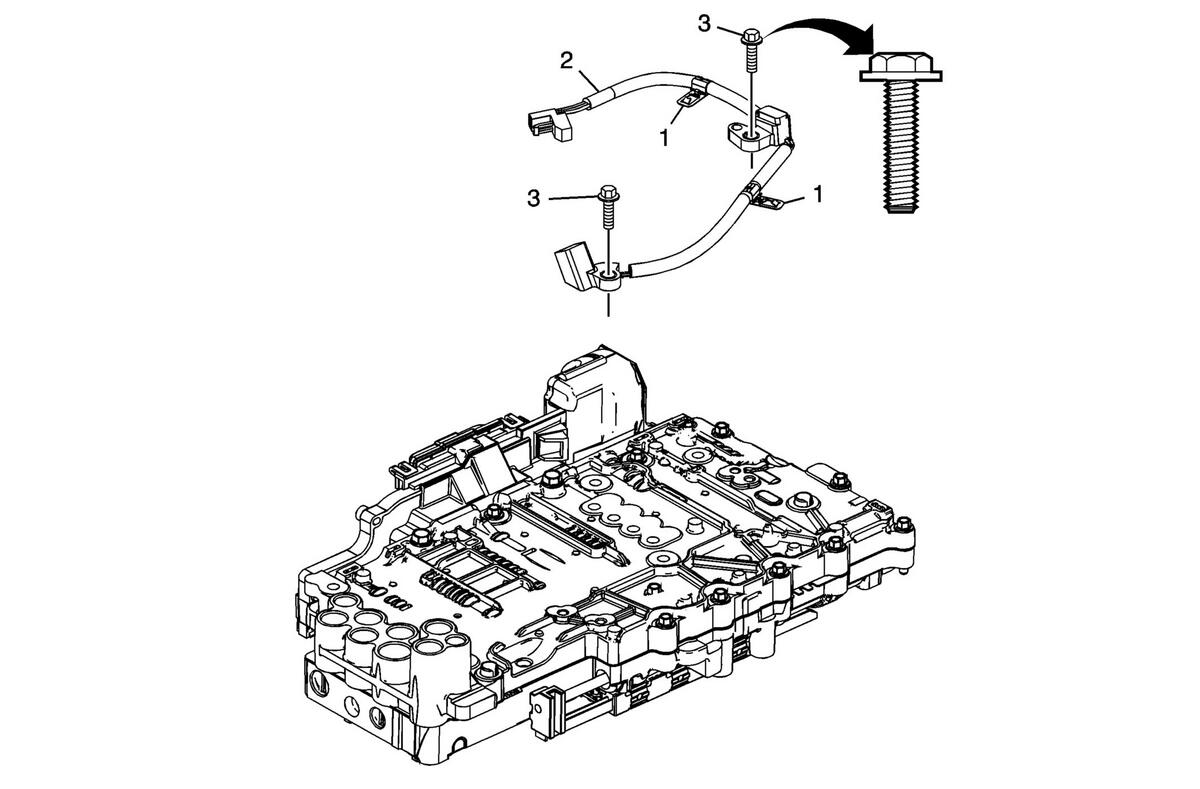

| Callout | Component Name |
|---|---|
| 1 | A/Trans Input and Output Speed Sensor Wiring Harness Clip (Qty: 2) Tip: Inspect the 2 wiring harness clips for damage. Replace if damaged. |
| 2 | A/Trans Input and Output Speed Sensor Assembly |
| 3 | Bolt M6 x 20 (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 12 N.m (106 lb in) |
