Cigar Lighter/Power Outlet Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

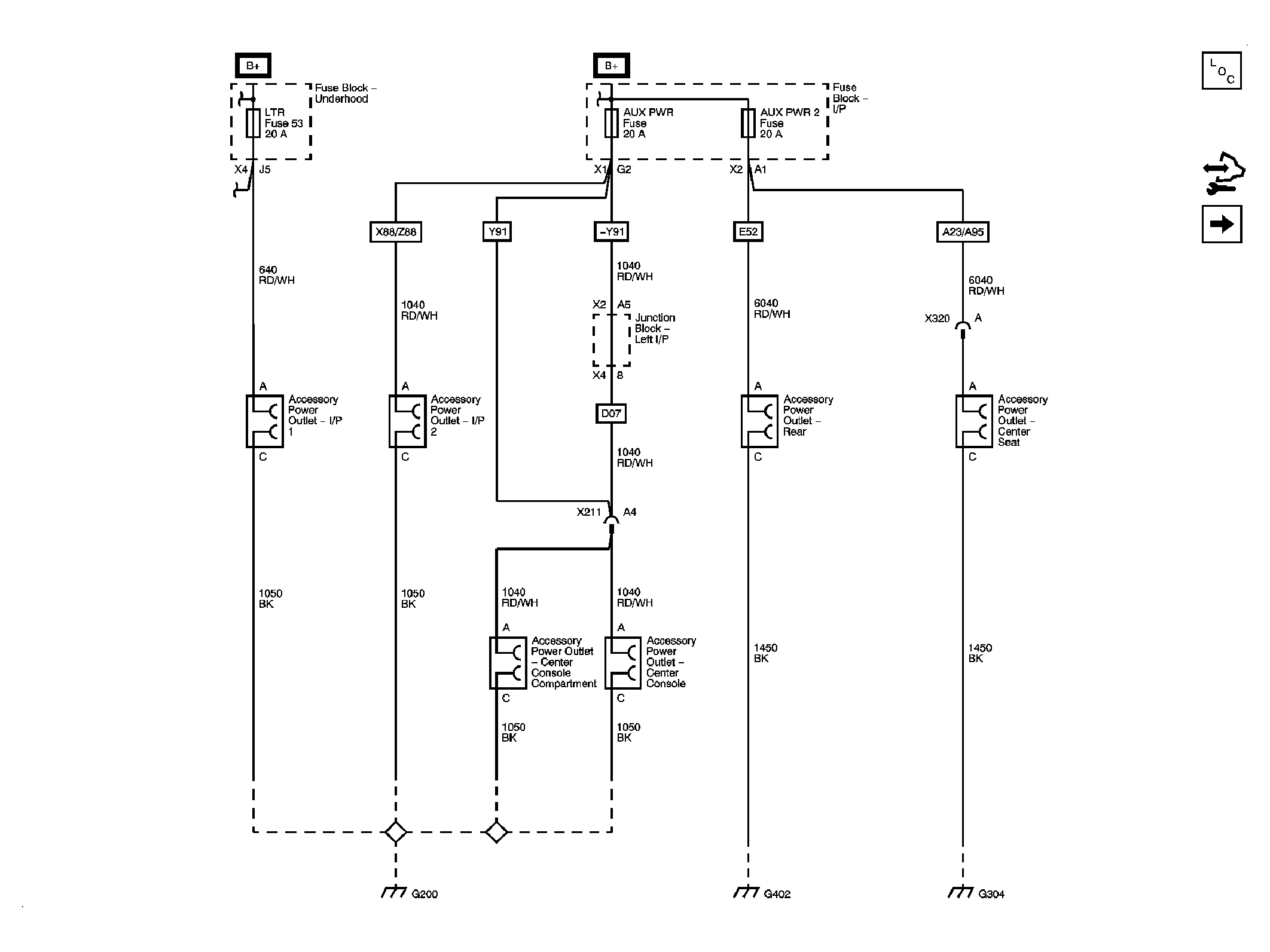

Fig 1: Cigar Lighter/Power Outlet Schematic
GM1906793Courtesy of GENERAL MOTORS CORP.
Fig 2: 110-Volt AC Power Outlet Schematic (HP2)
GM1988299Courtesy of GENERAL MOTORS CORP.
