SDM, MDL-RPA, MDL-ONSTAR, MDLS-BODY Fuses

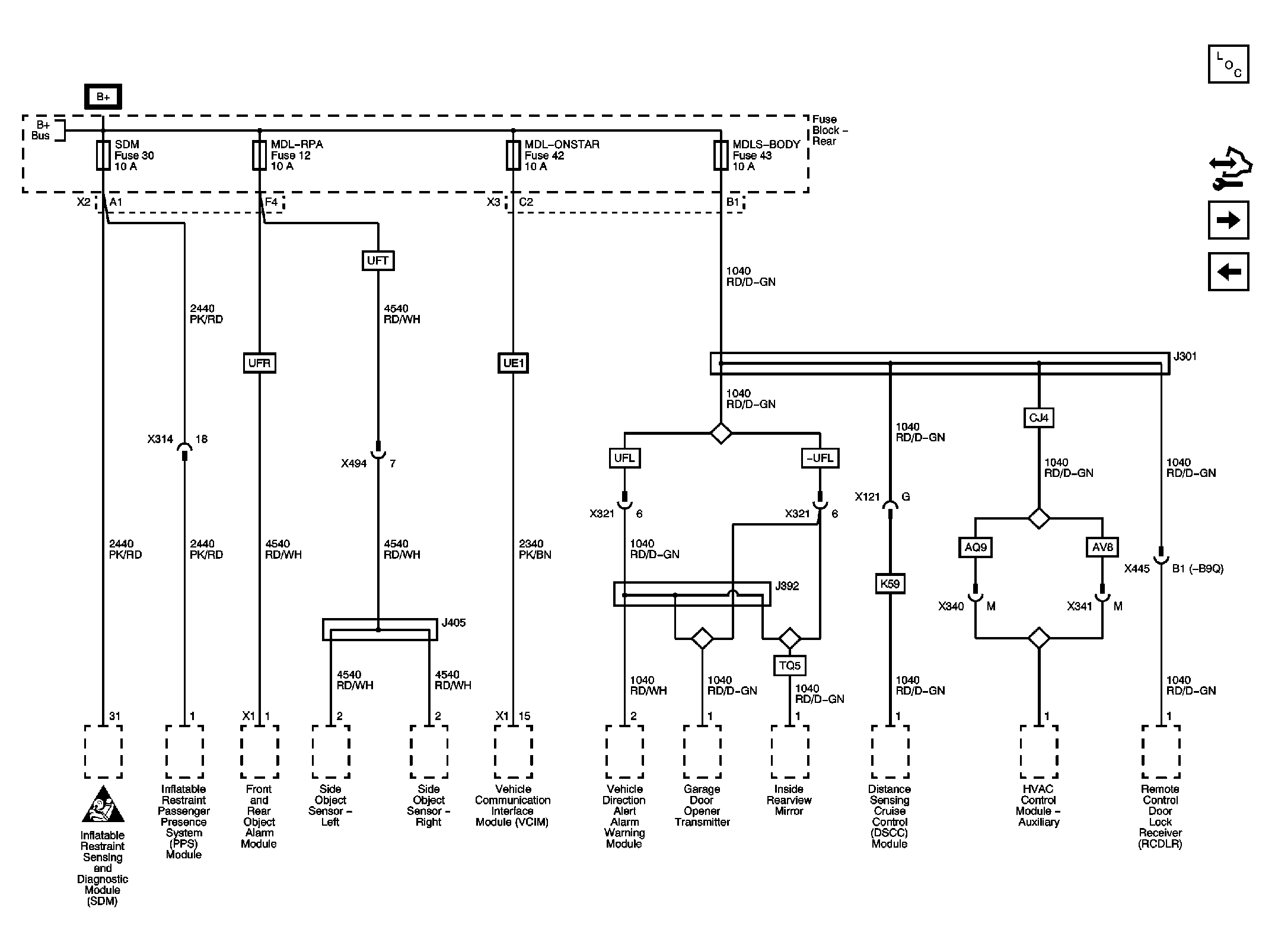

Fig 1: SDM, MDL-RPA, MDL-ONSTAR, MDLS-BODY Fuses Wiring Schematic

GM2398615

Courtesy of GENERAL MOTORS COMPANY
