ECM/TCM, MDL-MEM Fuses and PWR SEAT, PWR T/T, RF SEAT Circuit Breakers

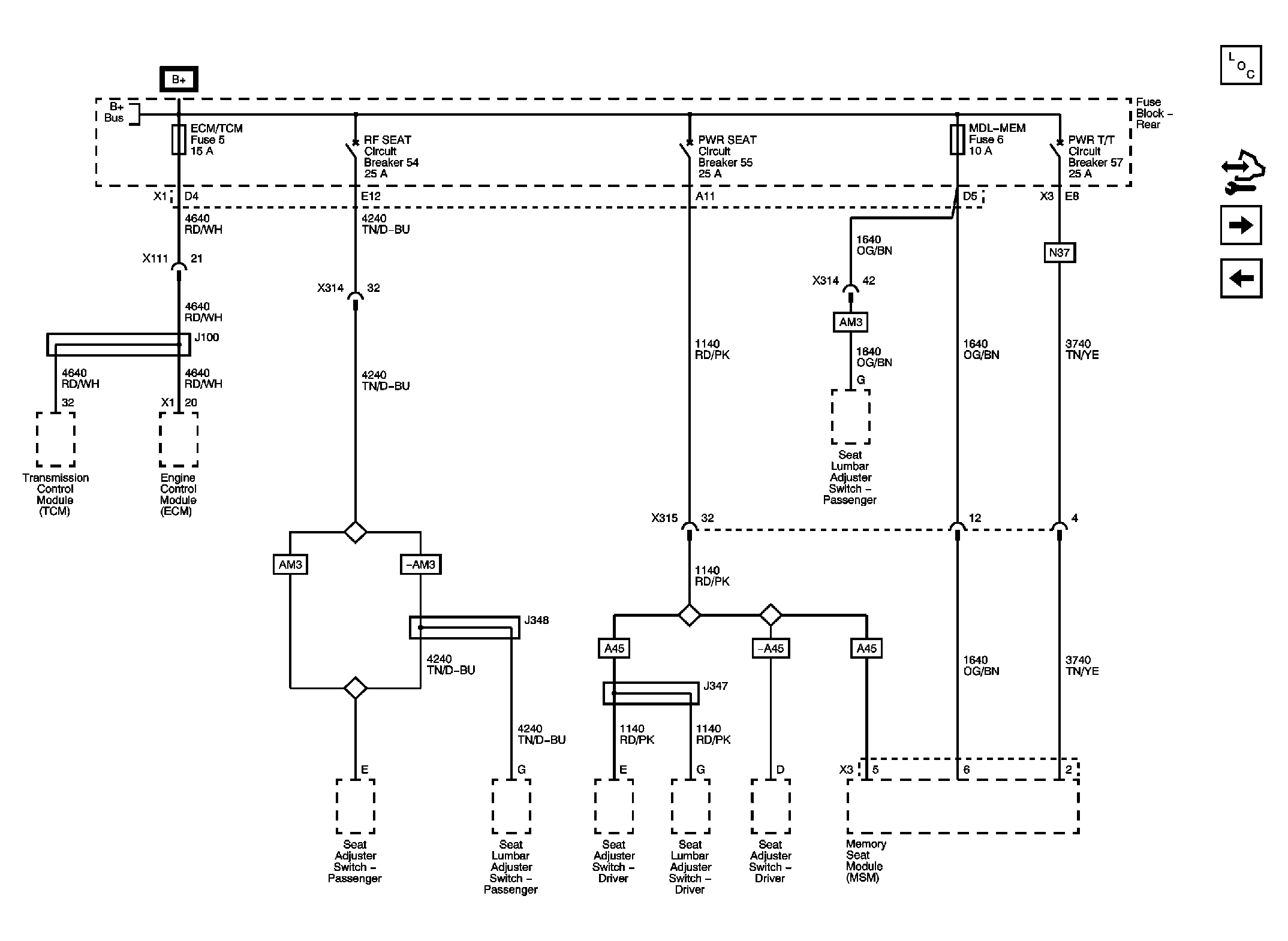

Fig 1: ECM/TCM, MDL-MEM Fuses and PWR SEAT, PWR T/T, RF SEAT Circuit Breakers Wiring Schematic
GM2398621Courtesy of GENERAL MOTORS COMPANY
