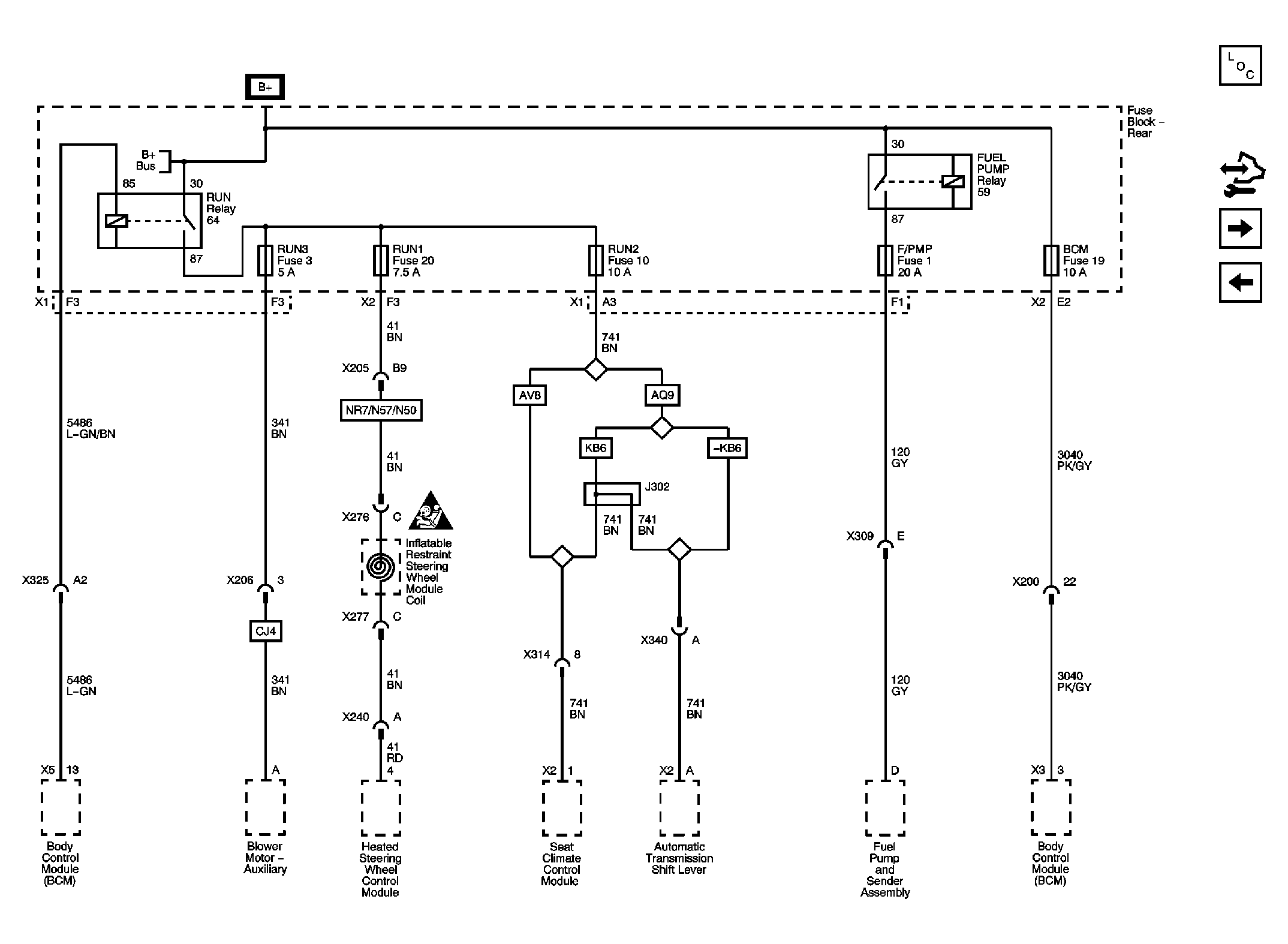

Home >> Cadillac >> 2011 >> DTS 4.6 6 >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams >> Routing Diagrams >> Power Distribution Wiring Schematics >> BCM, F/PMP, RUN1, RUN2, RUN3 Fuses
