BCM (CTSY), RAP1, RAP2, SUN ROOF, SWS-RR Fuses

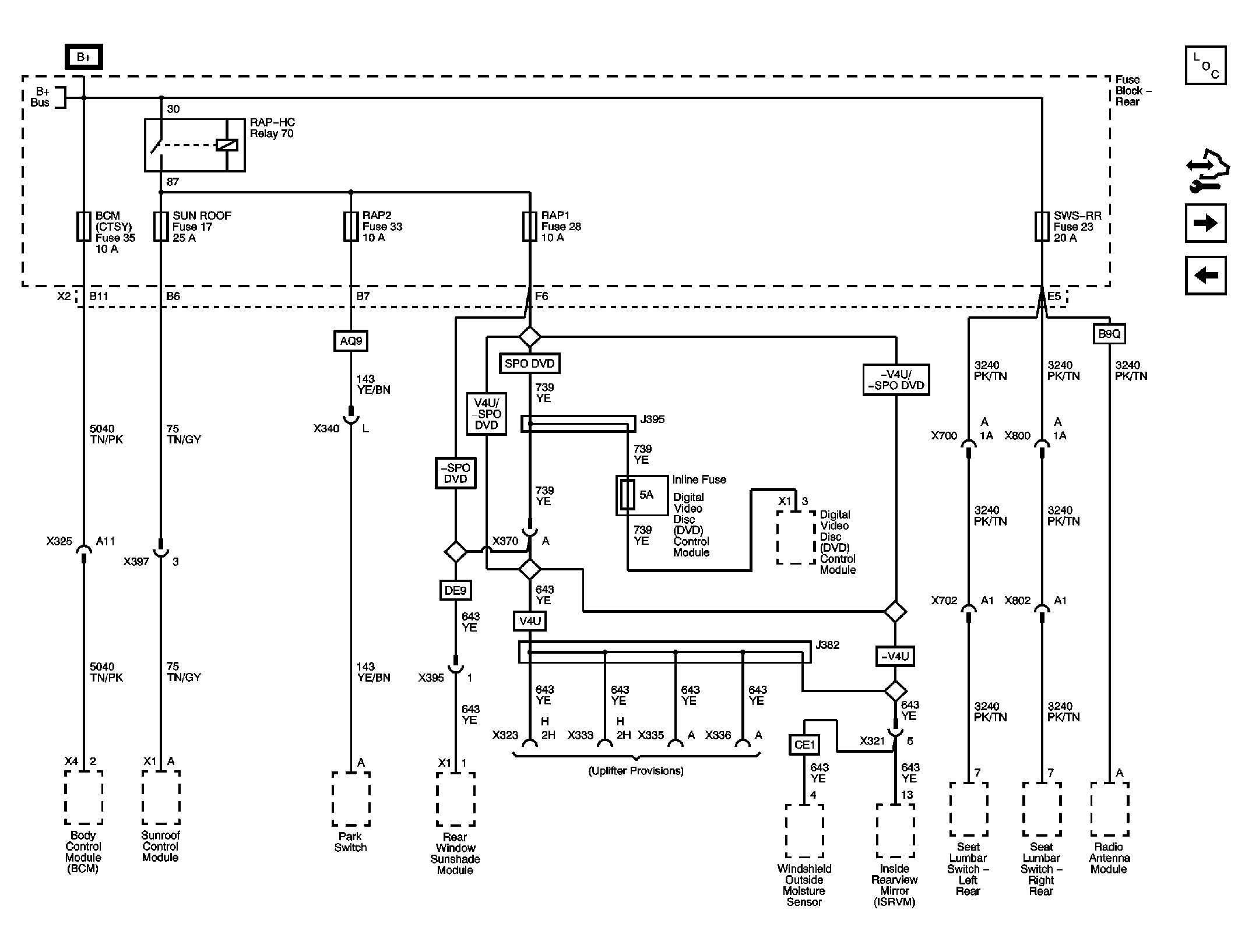

Fig 1: BCM (CTSY), RAP1, RAP2, SUN ROOF, SWS-RR Fuses Wiring Schematic

GM2398622

Courtesy of GENERAL MOTORS COMPANY
