APOS, BCM, COMP RELAY, LEVEL COMP, LTR-CIG, MDL-RTD, SOL CAN, TRK REL Fuses

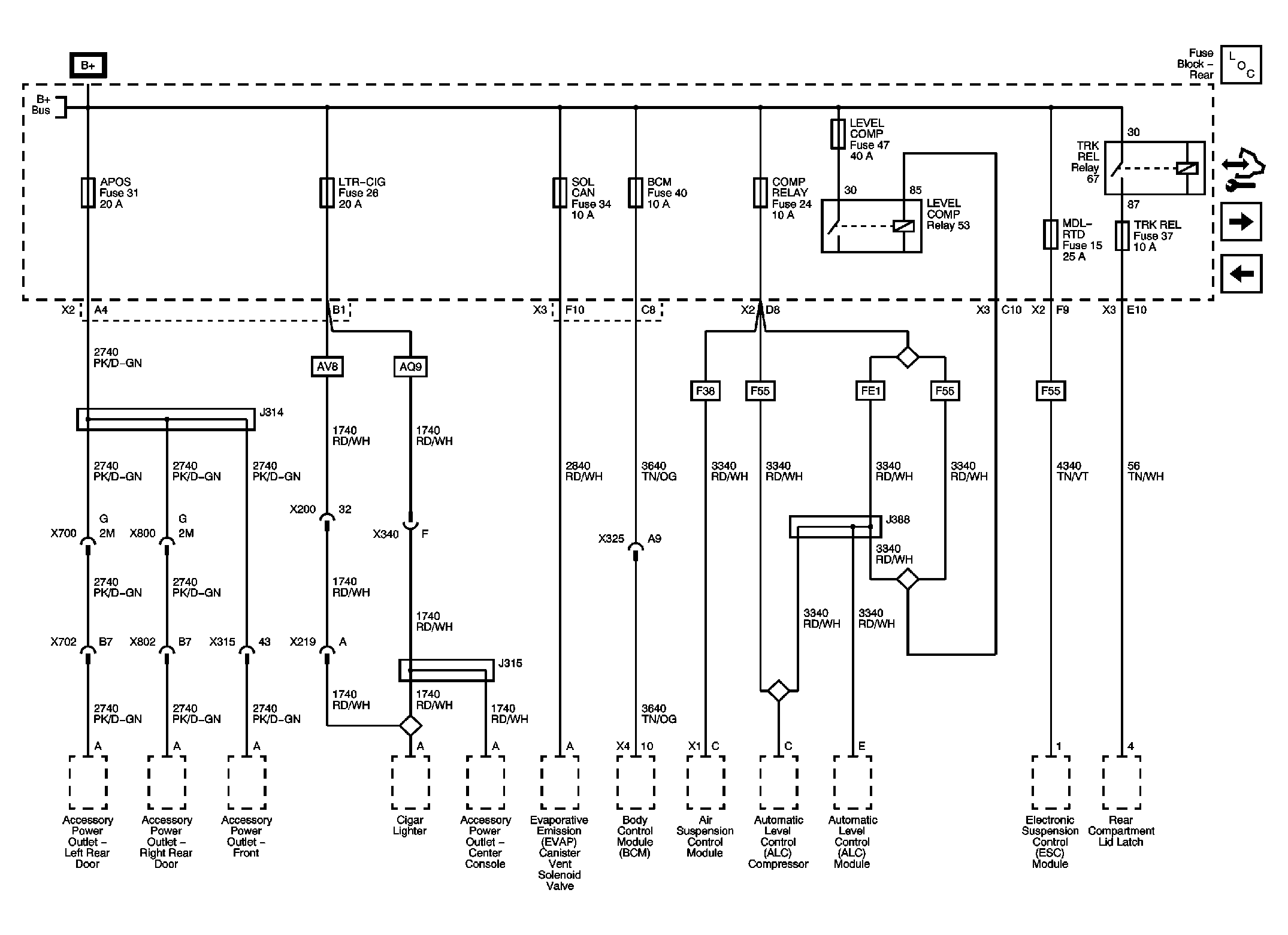

Fig 1: APOS, BCM, COMP RELAY, LEVEL COMP, LTR-CIG, MDL-RTD, SOL CAN, TRK REL Fuses Wiring Schematic
GM2398618Courtesy of GENERAL MOTORS COMPANY
