AMP-RDO, DDM, MDL-FRT, MDL-RR, NAV, PDM, RADIO Fuses

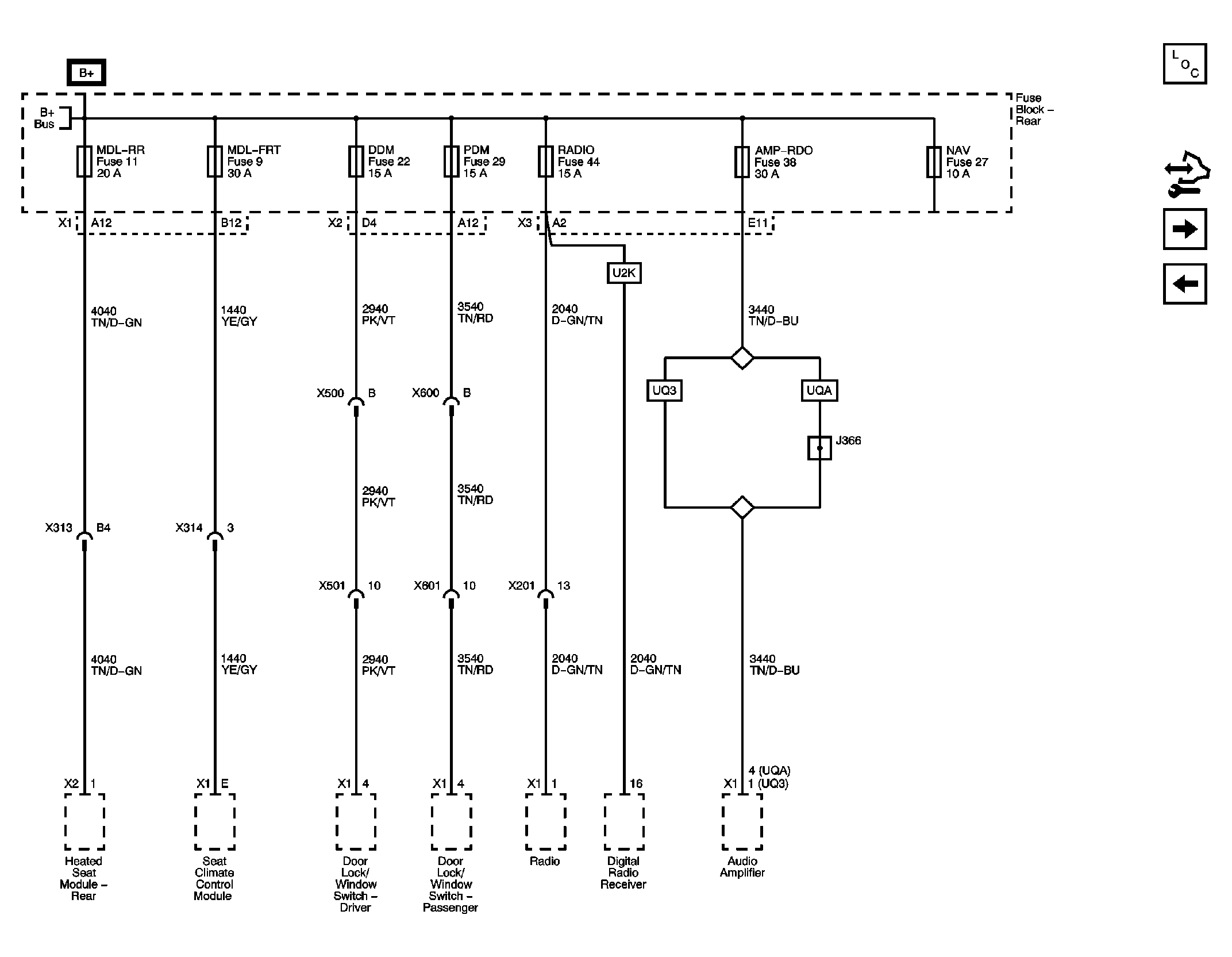

Fig 1: AMP-RDO, DDM, MDL-FRT, MDL-RR, NAV, PDM, RADIO Fuses Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
